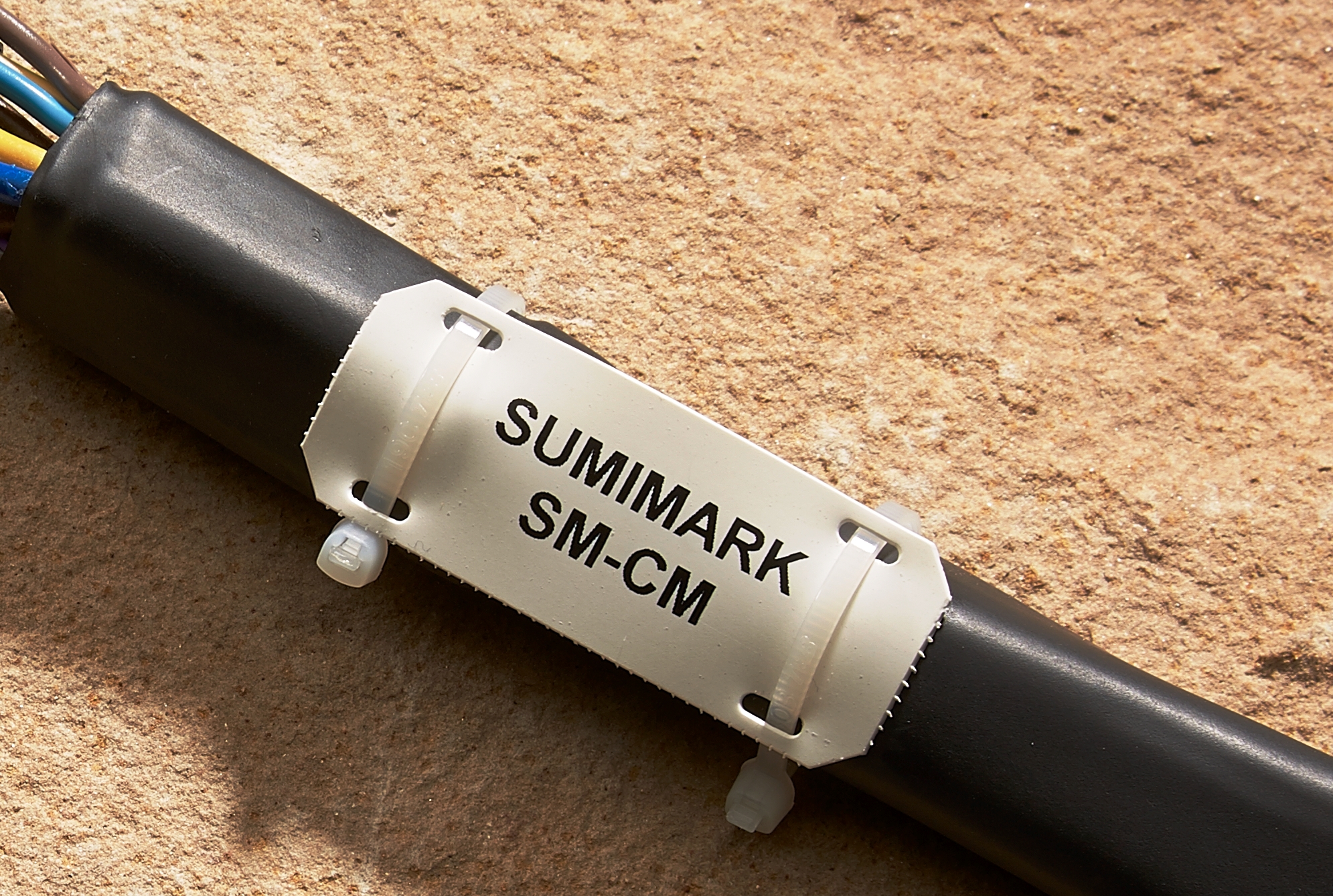

SM-CM

Flat, Non-Shrinkable, Cable Tag

Applications

  1. Retrofit projects where removal of existing cables is problematic
  2. Large cables and harnesses
  3. General purpose tie-wrap

Product Overview

Category
Heat-shrinkable tubing
Material
Cross-linked Polyolefin
Shrink ratio
Not applicable
Shrink temperature
Not applicable
Continuous operating temperature
-55° C to +135° C

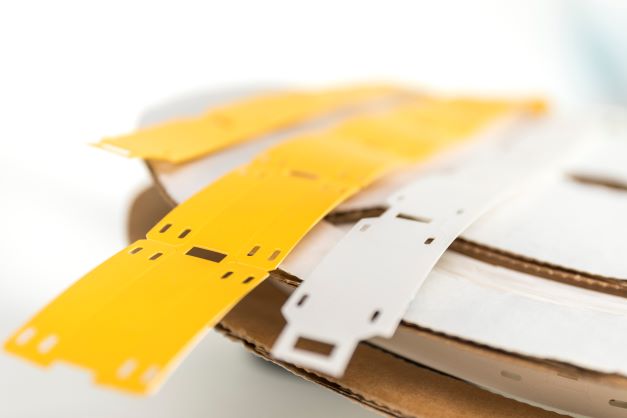

Available colors
Yellow, White
Flammability
Flame Retarded
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
Other

Additional Information

Design Continuous
Mark Performance SAE-AS5942
Fluid Resistance MIL-STD-202G Method 215J
Recommended Printer SumiMark IV 300 DPI
Recommended Ribbon SM3 Super Ribbon
Software Sumilabel

Basic Properties

Property Test Method Requirement
Physical:
Thickness Calipers or micrometer 0.022″ nom.
Tensile Strength ASTM D 412 1500 min.
Elongation (%) ASTM D 412 200 min.
Specific Gravity ASTM D 792 1.35 max
Heat resistance (175° C, 168 hrs.)
Elongation (%) ASTM D 412 100 min.
Secant Modulus (psi) ASTM D 882 2.5 X 104 max
Chemical:
Water absorption (%) ASTM D 570 0.5 max.
Fungus resistance ASTM G 21 Rating = 0 (no growth)

*For reference use only
