STS

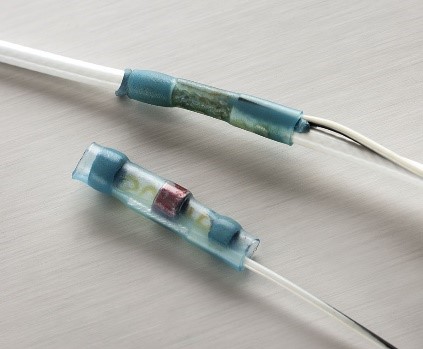

Sumitube® STS Solder Termination Sleeves devices provide the most reliable interconnect solutions with superior electrical and mechanical characteristics. STS Product Selection

STS products have a long history of use in a variety of areas ranging from commercial aircraft and military aerospace & defense to high volume commercial applications.
STS devices solder, seal, insulate, and strain relieve critical connections fast and repeatable in one simple step.

Product name
Features
Industry Specification
Continuous operating temperature
Cable OD range (Inches)
Solder Alloy
Insulation Material
H-M Series
Immersion resistant w/o lead wire
AS83519/1 (QPL listed product)
150°C
.020-.300
Sn63
Modified polyvinylidene fluoride
Shield terminator, environment resistant solder device
SAE-AS83519/1
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
H-ML Series
Immersion resistant with lead wire
AS83519/2 (QPL listed product)
150°C
.020-.300
Sn63
Modified polyvinylidene fluoride
Shield terminator, environment resistant solder device
SAE-AS83519/2
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
Shield terminator, environment resistant solder device
SAE-AS83519/2
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
Shield terminator, environment resistant solder device
SAE-AS83519/2
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
Shield terminator, environment resistant solder device
SAE-AS83519/2
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
H-MB Series
Immersion resistant with braid lead
AS83519/3 (QPL listed product)
150°C
.020-.300
Sn63
Modified polyvinylidene fluoride
Solder termination sleeve with pre-installed braid, environmental resistant
SAE-AS83519/3
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
Solder termination sleeve with pre-installed braid, environmental resistant
SAE-AS83519/3
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
Solder termination sleeve with pre-installed braid, environmental resistant
SAE-AS83519/3
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
H-HMB Series
Immersion resistant with braid lead
AS83519/5 (QPL listed product)
175°C
.020-.300
Sn96
Modified polyvinylidene fluoride
Solder termination sleeve with pre-installed braid, environmental resistant
SAE-AS83519/5
-55℃ to +175℃
.020-.300
Sn96
Modified polyvinylidene fluoride
Solder termination sleeve with pre-installed braid, environmental resistant
SAE-AS83519/5
-55℃ to +175℃
.020-.300
Sn96
Modified polyvinylidene fluoride
H-HC Series
High Temperature
RoHS Compliant
175°C
.020-.300
Sn96
Modified polyvinylidene fluoride
Solder termination sleeve, high temperature
N/A
-55℃ to +175℃
.020-.300
Sn96
Modified polyvinylidene fluoride
H-C Series
High Temperature Convection Heated, 150°C
NAS 1744, NAS 1745
150°C
.020-.545
Sn63
Modified polyvinylidene fluoride
Solder termination sleeve, immersion resistant
NAS 1745
-55℃ to +150℃
.020-.545
Sn63
Modified polyvinylidene fluoride
Solder termination sleeve, immersion resistant
NAS 1744
-55℃ to +150℃
.020-.545
Sn63
Modified polyvinylidene fluoride
Solder termination sleeve, immersion resistant
NAS 1744
-55℃ to +150℃
.020-.545
Sn63
Modified polyvinylidene fluoride
Solder termination sleeve, immersion resistant
NAS 1745
-55℃ to +150℃
.020-.545
Sn63
Modified polyvinylidene fluoride
L-C Series
Low Temperature Convection
NAS 1745
150°C
.020-.545
Cd18
Modified polyvinylidene fluoride
Solder termination sleeve, immersion resistant
NAS 1745
-55℃ to +150℃
.020-.545
Cd18
Modified polyvinylidene fluoride
H-I Series
H-I Series (High Temperature Infrared Heated
NAS 1746
150°C
.020-.300
Sn63
Modified polyvinylidene fluoride
Solder termination sleeve, immersion resistant
NAS 1746
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
High-temperature solder termination device, infrared heating
NAS 1746
-55℃ to +150℃
.020-.300
Sn63
Modified polyvinylidene fluoride
E-C Series
Commercial Wire Termination
RoHS Compliant
125°C
.020-.300
Bi58/Sn42
High-density modified polyolefin
Wet resistant solder termination sleeve
N/A
-55℃ to +125℃
.020-.300
Bi58/Sn42
High-density modified polyolefin
H-CR-436 Series
Crimp Kit Color Code Moisture resistant
AS81824/1 (QPL listed product)
150°C
AWG 26-12
-
Modified polyvinylidene fluoride
In-line splice copper, nickel plated crimp, environmental resistant
AS81824/1
-55℃ to +150℃
AWG 26-12
-
Modified polyvinylidene fluoride
