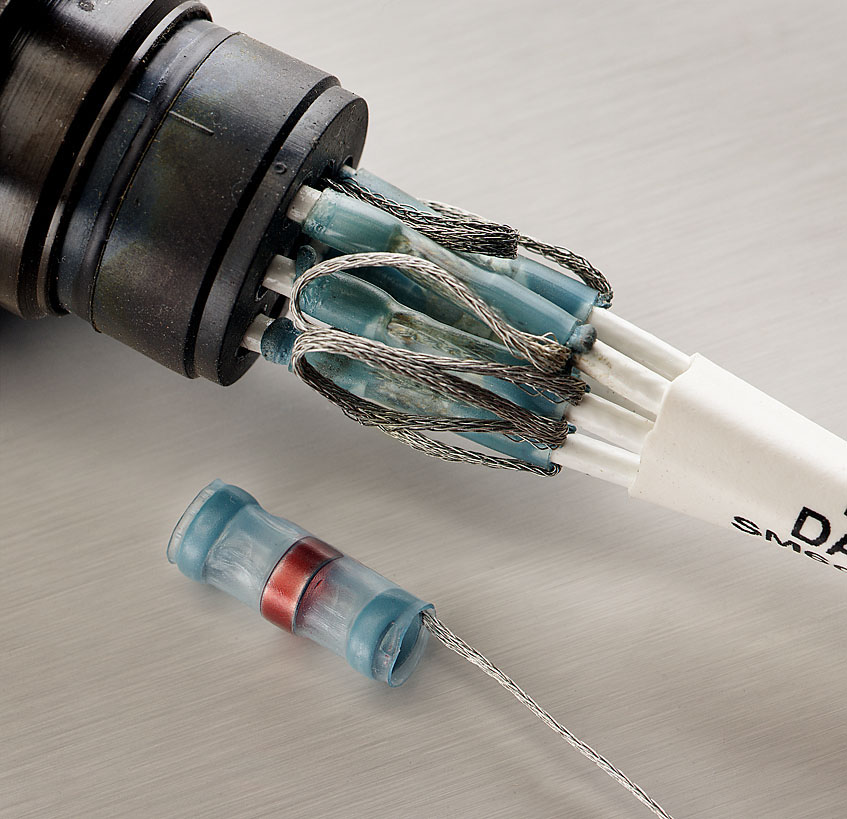

H-MB-[1-5] - Solder Termination Sleeve
Immersion Resistant with Braid Lead
SAE-AS83519/3
Product Overview
Category
Solder Terminations Sleeves
H-MB Series
Solder Termination Sleeve with Pre-Installed Braid, Environmental Resistant. SAE AS83519/3 Qualified, Class1, Sn63, Flux RMA, Braid, Flat, Tin Plated, 640CMA, Pre-Tinned
Material
INSULATION SLEEVE:HEAT-SHRINKABLE, RADIATION CROSSLINKED, MODIFIED POLYVINYLIDENE FLUORIDE.COLOR = TRANSPARENT BLUE. MELTABLE SEALING RING:THERMALLY STABILIZED THERMOPLASTIC. COLOR = 2 BLUE. SOLDER PREFORM:ALLOY - Sn63 WITH RED THERMOCHROMIC INDICATOR, EUTECTIC AT 183°C. PER ANSl-J-STD-006. FLUX - ROL 1 TYPE RMA FLUX FOR SILVER OR TIN APPLICATIONS. PER ANSl-J-STD-004. PRE-INSTALLED BRAID- FLAT, TIN PLATED STRANDS, 640CMA, 8X5X38 CONSTRUCTIONS, PRE-TINNED
Shrink Ratio
N/A
Shrink Temperature
N/A
Continuous operating temperature
-55℃ to +150℃
Flammability
Per AS83519
Industry
Aerospace, Solder Termination
Environmental compliance
Not RoHS compliant
Specifications/Approvals
SAE-AS83519/3
Other
N/A
Basic Properties
| Sumitomo Part Number | L ∓ .070 | øD Minimum | øD1 Minimum |
|---|---|---|---|
| H-MB-1 | .650 | .075 | .104 |
| H-MB-2 | .650 | .104 | .145 |
| H-MB-3 | .650 | .169 | .200 |
| H-MB-4 | .752 | .234 | .254 |
| H-MB-5 | .752 | .276 | .299 |
*For reference use only
