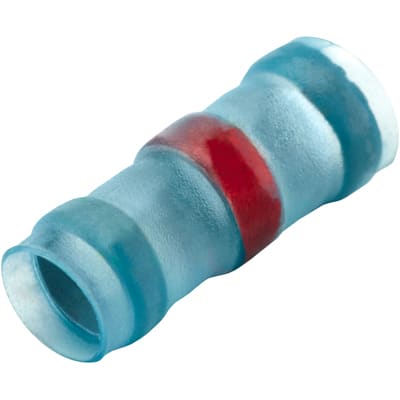

H-M-[1-5] - Solder Termination Sleeve

Shield Terminator, Environment Resistant Solder Device

SAE-AS83519/1
Product PDF

Product Overview

Category
Solder Terminations Sleeves
H-M Series
Immersion resistant w/o lead wire. Environment resistant SAE AS83519/1 Qualified
Material
INSULATION SLEEVE:
HEAT-SHRINKABLE, RADIATION CROSSLINKED, MODIFIED POLYVINYLIDENE FLUORIDE. COLOR = TRANSPARENT BLUE. MELTABLE SEALING RING:
THERMALLY STABILIZED THERMOPLASTIC. COLOR = 2 BLUE. SOLDER PREFORM:
ALLOY - Sn63 WITH RED THERMOCHROMIC INDICATOR, EUTECTIC AT 183°C. PER ANSl-J-STD-006. FLUX - ROL 1 TYPE RMA FLUX FOR SILVER OR TIN APPLICATIONS. PER ANSl-J-STD-004.
Shrink Ratio
N/A
Shrink Temperature
N/A
Continuous operating temperature
-55℃ to +150℃
Flammability
Per AS83519
Industry
Aerospace, Solder Termination
Environmental compliance
Not RoHS compliant
Specifications/Approvals

SAE-AS83519/1

Other
N/A

Basic Properties

Sumitomo Part Number L ∓ .070 øD Minimum øD1 Minimum
H-M-1 .650 .075 .105
H-M-2 .650 .105 .145
H-M-3 .650 .170 .200
H-M-4 .750 .235 .255
H-M-5 .750 .275 .300

*For reference use only
