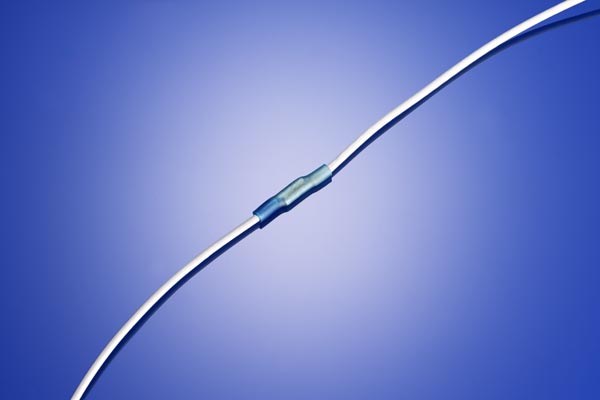

L-C-[1-7] - Solder Termination Sleeve

Low Temperature Convection Heated

NAS 1745
Product PDF

Product Overview

Category
Solder Terminations Sleeves
L-C Series
Solder Termination Sleeve, Immersion Resistant NAS 1745 Qualified, Cd18, Flux RA, for Nickel Applications
Material
INSULATION SLEEVE:
HEAT-SHRINKABLE, RADIATION CROSSLINKED, MODIFIED POLYVINYLIDENE FLUORIDE. COLOR = TRANSPARENT BLUE or Clear as Tabulated per NAS 1745 STANDARDS
MELTABLE SEALING RING:
THERMALLY STABILIZED THERMOPLASTIC. COLOR = 1 CLEAR, 1 BLUE.
SOLDER PREFORM:
ALLOY - Cd18 EUTECTIC AT 143°C. PER ANSl-J-STD-006. FLUX- ROL1 TYPE RA FLUX FOR NICKEL APPLICATIONS PER ANSl-J-STD-004
Shrink Ratio
N/A
Shrink Temperature
N/A
Continuous operating temperature
-55℃ to +125℃
Flammability
Per NAS 1745
Industry
Aerospace, Solder Termination
Environmental compliance
NON-RoHS
Specifications/Approvals

NAS 1745

Other
N/A

Basic Properties

Sumitomo Part Number L ∓ .062 øD Minimum øD1 Minimum
L-C-1 .625 .075 .095
L-C-2 .625 .110 .125
L-C-3 .625 .180 .200
L-C-4 .750 .235 .255
L-C-5 .750 .280 .300
L-C-5.5 .900 .355 .410
L-C-6 1.100 .440 .460
L-C-7 1.100 .525 .545

*For reference use only
