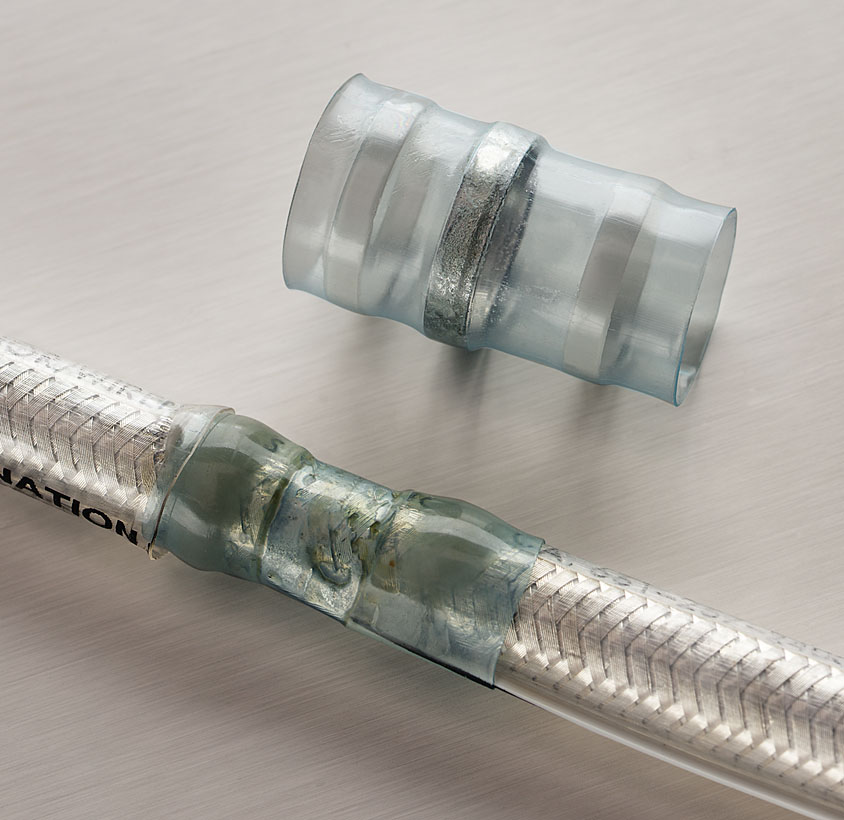

H-C-[1-7] - Solder Termination Sleeve
High Temperature Convection Heated, 150℃
NAS 1745
Product Overview
Category
Solder Terminations Sleeves
H-C Series
Solder Termination Sleeve, Immersion Resistant NAS 1745 Qualified, Sn63, Flux RMA
Material
INSULATION SLEEVE:HEAT-SHRINKABLE, RADIATION CROSSLINKED, MODIFIED POLYVINYLIDENE FLUORIDE. COLOR = TRANSPARENT BLUE. MELTABLE SEALING RING:THERMALLY STABILIZED THERMOPLASTIC. COLOR = 2 CLEAR SOLDER PREFORM:ALLOY - Sn63 EUTECTIC AT 183°C. PER ANSl-J-STD-006. FLUX- ROL1 TYPE RMA FLUX FOR TIN OR SILVER APPLICATIONS. PER ANSl-J-STD-004
Shrink Ratio
N/A
Shrink Temperature
N/A
Continuous operating temperature
-55℃ to +150℃
Flammability
PER NAS 1745
Industry
Aerospace, Solder Termination
Environmental compliance
NON-RoHS
Specifications/Approvals
NAS 1745
Other
N/A
Basic Properties
| Sumitomo Part Number | L ∓ .062 | øD Minimum | øD1 Minimum |
|---|---|---|---|
| H-C-1 | .625 | .075 | .095 |
| H-C-2 | .625 | .110 | .125 |
| H-C-3 | .625 | .180 | .200 |
| H-C-4 | .750 | .235 | .255 |
| H-C-5 | .750 | .280 | .300 |
| H-C-5.5 | .900 | .355 | .410 |
| H-C-6 | 1.100 | .440 | .460 |
| H-C-7 | 1.100 | .525 | .545 |
*For reference use only
