SM3-12

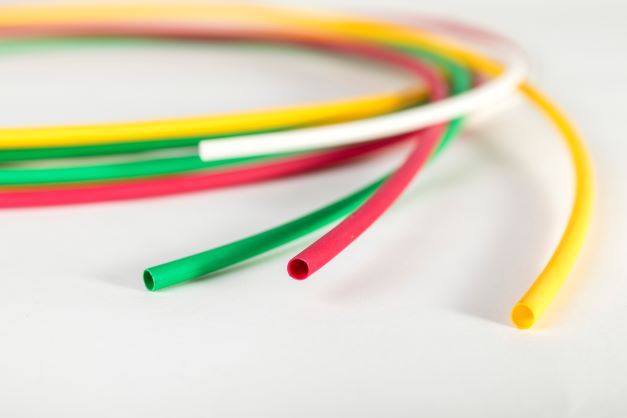

2:1 Continuous Printable Polyolefin Tubing
SAE AS 23053/5, Class 1 & 3 compliant
UL recognized
CSA
Applications
- Wire Identification
- Wire Protection
- Fluid Resistance
- Strain Relief
- Abrasion Protection
Product Overview
Category
Heat-shrinkable tubing
Material
Irradiated, cross-linked, flexible flame-retarded polyolefin
Shrink ratio
2:1
Shrink temperature
90° C
Continuous operating temperature
-55° C to +135° C
Available colors
Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Purple, Gray, White
Flammability
Flame Retarded
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
Other
Additional Information
Design
Continuous
Mark Performance
SAE-AS5942
Fluid Resistance
-
Recommended Printer
-
Recommended Ribbon
SM3 Black Standard
Software
Sumilabel
Basic Properties
| Property | Test Method | Requirement |
| Physical: | ||
| Tensile Strength | ASTM D 638 | 1500 min. |
| Elongation (%) | ASTM D 638 | 200 min. |
| Specific gravity | ASTM D 792 | 1.35 max. |
| Low temperature flex (-55° C) | AMS-DTL-23053 | no cracking |
| Heat shock (250° C, 4 hrs.) | AMS-DTL-23053 | no cracking |
| Heat resistance (175° C, 168 hrs.) | ||
| Elongation (%) | ASTM D 638 | 100 min. |
| Longitudinal change (%) | AMS-DTL-23053 | +/- 5 |
| Secant modulus (psi) | ASTM D 882 | 2.5 X 104 max. |
| Electrical: | ||
| Dielectric strength (volts/mil) | ASTM D 876 | 500 min. |
| Volume resistivity (ohm-cm) | ASTM D 876 | 1.0 X 1014 min. |
| Chemical: | ||
| Corrosion (175° C, 16 hrs.) | AMS-DTL-23053 | no corrosion |
| Water absorption (%) | ASTM D 570 | 0.5 max. |
| Fluid resistance (23° C, 24 hrs.) | ||
| Tensile strength (psi) | AMS-DTL-23053 | 1000 min. |
| Flammability | UL 224 VW-1 | Pass |
| Shrink temperature, nominal | 90° C |
*For reference use only
Sizes
| Nominal Size | ID Minimum (As Supplied) | ID Maximum (After Recovery) | Wall Thickness Nom (After Recovery) | |||
| Inches | MM | Inches | MM | Inches | MM | |
| 1/16″ | .063 | 1.6 | .031 | 0.8 | .017 | 0.43 |
| 3/32″ | 0.93 | 2.4 | .046 | 1.2 | .020 | 0.51 |
| 1/8″ | .125 | 3.2 | .062 | 1.6 | .020 | 0.51 |
| 3/16″ | .187 | 4.8 | .093 | 2.4 | .020 | 0.51 |
| 1/4″ | .250 | 6.4 | .125 | 3.2 | .025 | 0.64 |
| 3/8″ | .375 | 9.5 | .187 | 4.8 | .025 | 0.64 |
| 1/2″ | .500 | 12.7 | .250 | 6.4 | .025 | 0.64 |
| 3/4″ | .750 | 19.1 | .375 | 9.5 | .030 | 0.76 |
| 1″ | 1.00 | 25.4 | .500 | 12.7 | .035 | 0.89 |
| 1-1/2″ | 1.50 | 38.1 | .750 | 19.1 | .040 | 1.02 |
| 2″ | 2.00 | 50.8 | 1.00 | 25.4 | .045 | 1.14 |
