SM3-24

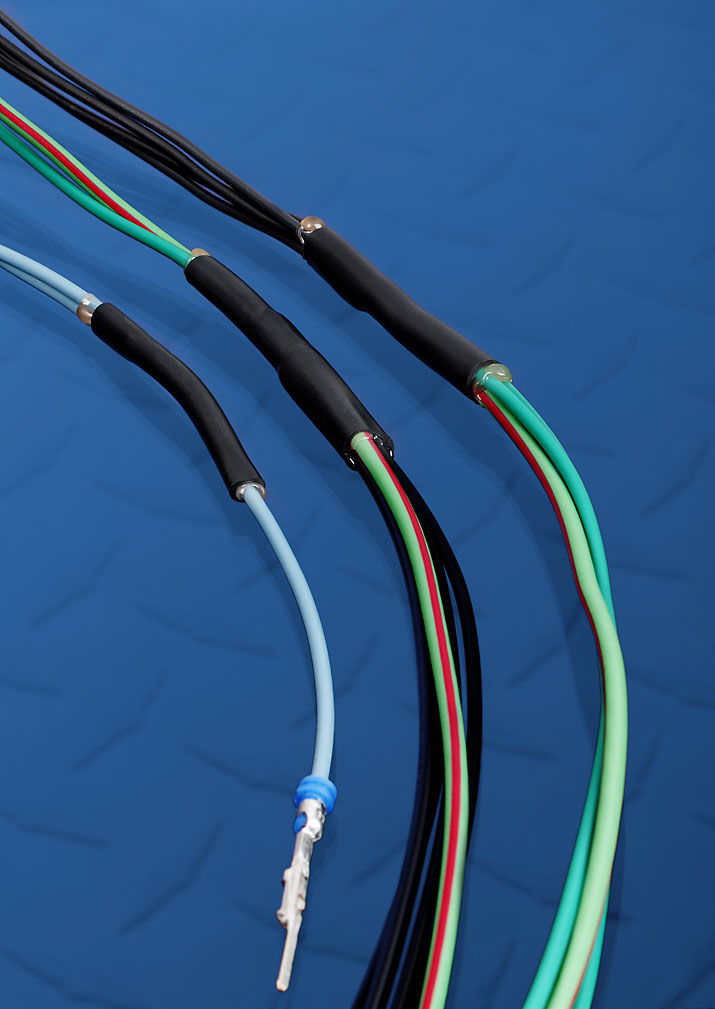

2:1 Continuous Printable Dual Wall Adhesive-Lined Tubing

AS23053/4 Class 2 UL 224, 125° C, 600 Volts

Product Overview

Category
Heat-shrinkable tubing
Material
Thin Wall, Adhesive Polyolefin
Shrink ratio
2:1
Shrink temperature
110° C
Continuous operating temperature
-55° C to +110° C
Available colors

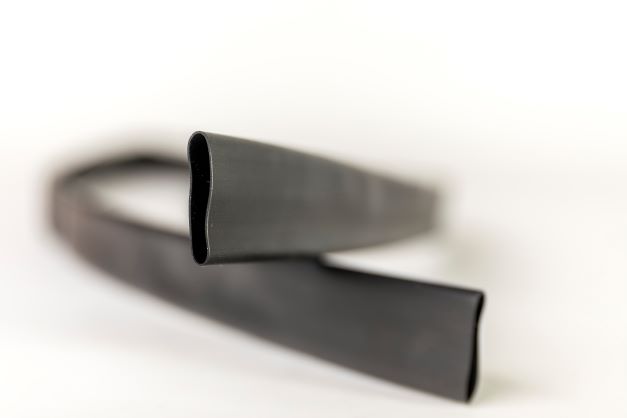

Black
Flammability
Flame Retarded
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
Other

Additional Information

Design Continuous
Mark Performance SAE-AS5942
Fluid Resistance MIL-STD-202G Method 215J
Recommended Printer SumiMark IV 300 DPI
Recommended Ribbon SM3 White Ribbon
Software Sumilabel

Basic Properties

Property Test Method Requirement
Physical:
Tensile strength ASTM D 638 1500 min.
Elongation (%) ASTM D 638 200 min.
Cold impact (-55° C , 4 hrs) ASTM D 746 No cracking
Heat shock (250° C, 4 hrs.) AMS-DTL-23053 No cracking
Heat resistance (175° C, 168 hrs.)
Elongation (%) ASTM D 638 100 min.
Longitudinal change (%) AMS-DTL-23053 +5, -15
Secant Modulus (psi) ASTM D 882 2.5 x 104 max
Electrical:
Dielectric strength (volts/mil) ASTM D 876 500 min.
Volume resistivity (ohm-cm) ASTM D 876 1.0 X 1014 min.
Chemical:
Corrosion (175° C, 16 hrs.) UL 224 No corrosion
Water absorption (%) ASTM D 570 0.5 max.
Fluid resistance (23° C, 24 hrs.)
Tensile strength (psi) AMS-DTL-23053 1000 min.
Flammability UL 224 Pass
Shrink temperature, nominal 110° C

*For reference use only

Sizes

Nominal Size ID Minimum (As Supplied) ID Maximum (After Recovery) Wall Thickness Nom (After Recovery)
Inches MM Inches MM Inches MM
1/8″* .125 3.2 .062 1.6 .020 0.51
3/16″* .187 4.8 .093 2.4 .020 0.51
1/4″ .250 6.4 .125 3.2 .025 0.64
3/8″* .375 9.5 .187 4.8 .025 0.64
1/2″ .500 12.7 .250 6.4 .025 0.64
3/4″ .750 19.1 .375 9.5 .030 0.76
1″ 1.00 25.4 .500 12.7 .035 0.89
* Non-Mil spec sizes
