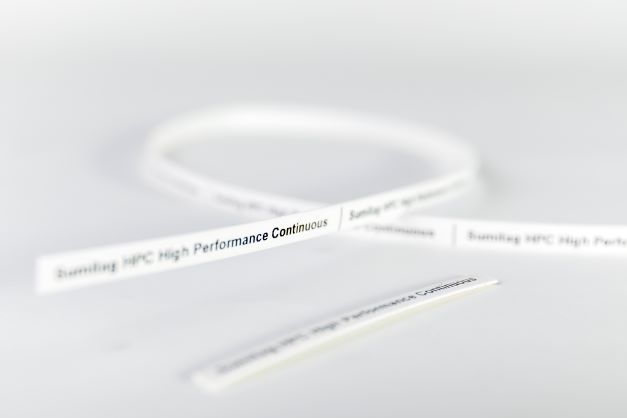

SM3-31

2:1 Continuous Printable Flexible Fluoropolymer

AS23053/18 Class 3
Wall Type - SINGLE

Product Overview

Category
Heat-shrinkable tubing
Material
Fluoropolymer
Shrink ratio
2:1
Shrink temperature
130° C
Continuous operating temperature
-55° C to +150° C
Available colors
White
Flammability
Flame Retarded
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
Other

Additional Information

Design Continuous
Mark Performance SAE-AS5942
Fluid Resistance MIL-STD-202G Method 215J
Recommended Printer SumiMark IV 300 DPI
Recommended Ribbon SM3 Black Standard
Software Sumilabel

Basic Properties

Property Test Method Requirement
Physical:
Tensile Strength ASTM D 638 1500 min.
Elongation (%) ASTM D 638 200 min.
Specific Gravity ASTM D 792 2.0 max
Low Temperature Flex (-55° C) AMS-DTL-23053 No cracking
Heat shock (250° C, 4 hrs.) AMS-DTL-23053 No cracking
Heat resistance (175° C, 168 hrs.)
Elongation (%) ASTM D 638 100 min.
Longitudinal change (%) AMS-DTL-23053 +1, -10
Secant Modulus (psi) ASTM D 882 2.5 x 104 max
Electrical:
Dielectric strength (volts/mil) ASTM D 876 400 min.
Volume resistivity (ohm-cm) ASTM D 876 1.0 X 1011 min.
Chemical:
Copper Stability (180° C), 168 hrs
Elongation (%) UL224 70% of unaged value min.
Water absorption (%) ASTM D 570 0.5 max.
Fluid resistance (23° C, 24 hrs.)
Tensile strength (psi) AMS-DTL-23053 1000 min.
Flammability UL 224 VW-1 Pass
Shrink temperature, nominal 130° C

*For reference use only

Sizes

Nominal Size ID Minimum (As Supplied) ID Maximum (After Recovery) Wall Thickness Nom (After Recovery)
Inches MM Inches MM Inches MM
1/8″ .125 3.2 .062 1.6 .010 0.31
3/16″ .187 4.8 .093 2.4 .010 0.31
1/4″ .250 6.4 .125 3.2 .012 0.36
3/8″ .375 9.5 .187 4.8 .012 0.36
1/2″ .500 12.7 .250 6.4 .012 0.36
3/4″ .750 19.1 .375 9.5 .017 0.43
1″ 1.00 25.4 .500 12.7 .019 0.48
