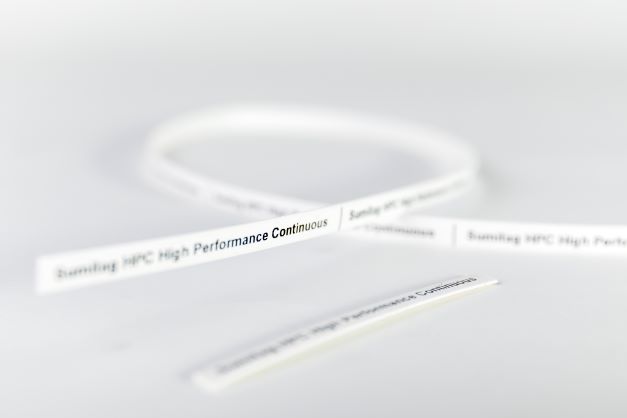

SM3-34
2:1 Continuous Printable Halogen Free
Product Overview
Category
Heat-shrinkable tubing
Material
Flame retarded polyolefin
Shrink ratio
2:1
Shrink temperature
110° C
Continuous operating temperature
-30° C to +105° C
Available colors
Yellow, White
Flammability
Flame Retarded
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
Other
Additional Information
Design
Continuous
Mark Performance
SAE-AS5942
Fluid Resistance
-
Recommended Printer
-
Recommended Ribbon
SM3 Super Ribbon
Software
Sumilabel
Basic Properties
| Property | Test Method | Requirement |
| Physical: | ||
| Tensile Strength | ASTM D 638 | 1000 min. |
| Elongation (%) | ASTM D 638 | 200 min. |
| Specific Gravity | ASTM D 792 | 1.4 nom. |
| Low Temperature Flex (-55° C) | AMS-DTL-23053 | No cracking |
| Heat shock (180° C, 4 hrs.) | AMS-DTL-23053 | No cracking |
| Heat resistance (136° C, 168 hrs.) | ||
| Tensile Strength (psi) | ASTM D 638 | 1000 min. |
| Elongation (%) | ASTM D 638 | 150 min. |
| Longitudinal change (%) | ASTM D 2671 | -15 min. |
| Secant Modulus (psi) | ASTM D 882 | 2.5 X 104 max |
| Electrical: | ||
| Dielectric strength (volts/mil) | ASTM D 876 | 500 min. |
| Volume resistivity (ohm-cm) | ASTM D 876 | 1.0 X 1012 min. |
| Fire Safety: | ||
| Oxygen index | BS 6853 | 34 min. |
| Toxic fume emission | BS 6853 | 1.0 max. |
| Smoke density, flaming mode | ASTM E 662 | 100 max. |
| Smoke density, non-flaming mode | ASTM E 662 | 200 max. |
| Radiant panel index, Is | ASTM E 162 | 25 max. |
*For reference use only
Sizes
| Nominal Size | ID Minimum (As Supplied) | ID Maximum (After Recovery) | Wall Thickness Nom (After Recovery) | |||
| Inches | MM | Inches | MM | Inches | MM | |
| 3/32″ | .093 | 2.4 | .046 | 1.2 | .020 | 0.51 |
| 1/8″ | .125 | 3.2 | .062 | 1.6 | .020 | 0.51 |
| 3/16″ | .187 | 4.8 | .093 | 2.4 | .020 | 0.51 |
| 1/4″ | .250 | 6.4 | .125 | 3.2 | .025 | 0.64 |
| 3/8″ | .375 | 9.5 | .187 | 4.8 | .025 | 0.64 |
| 1/2″ | .500 | 12.7 | .250 | 6.4 | .025 | 0.64 |
| 3/4″ | .750 | 19.1 | .375 | 9.5 | .030 | 0.76 |
| 1″ | 1.00 | 25.4 | .500 | 12.7 | .035 | 0.89 |
| 1.5″ | 1.500 | 38.1 | .750 | 19.1 | .040 | 1.02 |
| 2″ | 2.000 | 50.8 | 1.000 | 25.4 | .050 | 1.27 |
