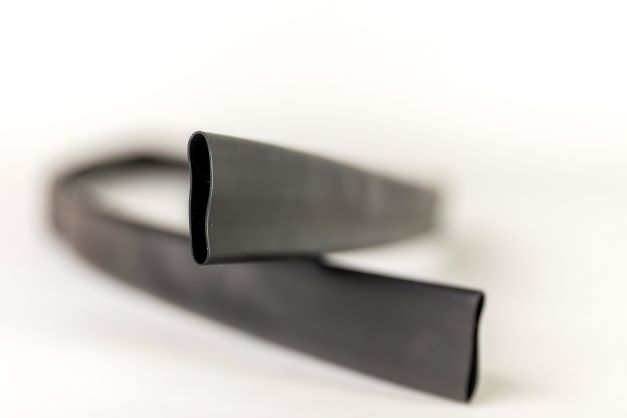

SM3-41

2:1 Continuous Printable Over-expanded Polyolefin

AS23053/5 Class 1
Wall Type - SINGLE

Applications

  • Wire Identification
  • Wire Protection
  • Fluid Resistance
  • Strain Relief
  • Abrasion Protection
  • Repair/Retrofit

Product Overview

Category
Heat-shrinkable tubing
Material
Thin Wall, Over-Expanded Polyolefin
Shrink ratio
4:1
Shrink temperature
90° C
Continuous operating temperature
-55° C to +135° C
Available colors
Black, White
Flammability
Flame Retarded
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
Other

Additional Information

Design -
Mark Performance SAE-AS5942
Fluid Resistance MIL-STD-202G Method 215J
Recommended Printer SumiMark IV 300 DPI
Recommended Ribbon SM3 White Ribbon
Software Sumilabel

Basic Properties

Property Test Method Requirement
Physical:
Tensile Strength ASTM D 638 1500 min.
Elongation (%) ASTM D 638 200 min.
Specific Gravity ASTM D 792 1.35 max
Low Temperature Flex (-55° C) AMS-DTL-23053 No cracking
Heat shock (250° C, 4 hrs.) AMS-DTL-23053 No cracking
Heat resistance (175° C, 168 hrs.)
Elongation (%) ASTM D 638 100 min.
Longitudinal change (%) AMS-DTL-23053 +5, -50
Secant Modulus (psi) ASTM D 882 2.5 X 104 max
Electrical:
Dielectric strength (volts/mil) ASTM D 876 500 min.
Volume resistivity (ohm-cm) ASTM D 876 2.5 X 104 min.
Chemical:
Corrosion (175° C, 16 hrs.) UL 224 No corrosion
Water absorption (%) ASTM D 570 0.5 max.
Fluid resistance (23° C, 24 hrs.)
Tensile strength (psi) AMS-DTL-23053 1000 min.
Flammability UL 224 VW1 Pass

*For reference use only

Sizes

Nominal Size ID Minimum (As Supplied) ID Maximum (After Recovery) Wall Thickness Nom (After Recovery)
Inches MM Inches MM Inches MM
3/4″ .750 19.1 .180 4.6 .045 1.14
1″ 1.00 25.4 .260 6.6 .045 1.14
