SM3-60

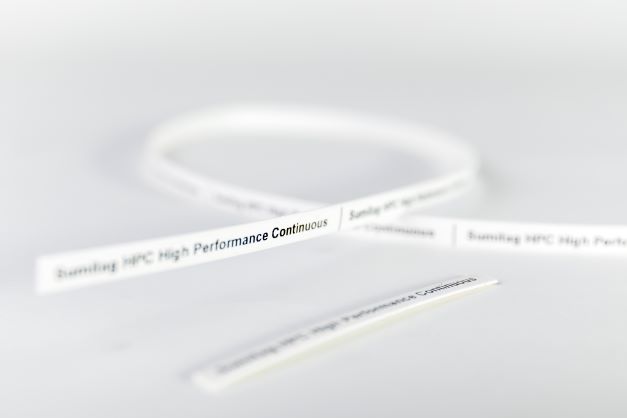

2:1 Continuous Printable High Temperature Fluoroelastomer

AS23053/13 NASA SP-R0022A
Wall Type - SINGLE

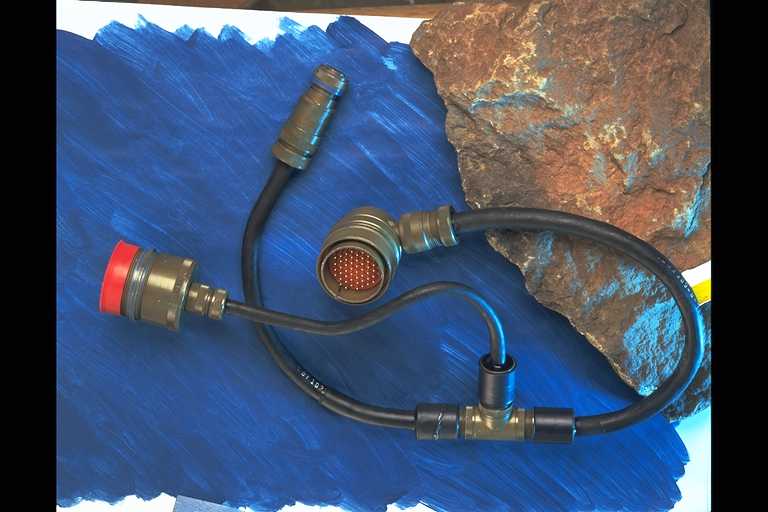

Applications

  • Wire Identification
  • Wire Protection
  • Chemical Resistance
  • Strain Relief
  • Abrasion Protection
  • Extreme Temperature Resistance

Product Overview

Category
Heat-shrinkable tubing
Material
Fluoroelastomer
Shrink ratio
2:1
Shrink temperature
120° C
Continuous operating temperature
-40° C to +200° C
Available colors
Black, White
Flammability
Flame Retarded
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
Other

Additional Information

Design Continuous
Mark Performance SAE-AS5942
Fluid Resistance MIL-STD-202G Method 215J
Recommended Printer SumiMark IV 300 DPI
Recommended Ribbon SM3 White Ribbon
Software Sumilabel

Basic Properties

Property Test Method Requirement
Physical:
Tensile Strength ASTM D 638 1200 min.
Elongation (%) ASTM D 638 250 min.
Tensile Stress @ 200% elongation (psi) ASTM D 412 2000 max.
Low Temperature Flex (-40° C) AMS-DTL-23053 No cracking
Heat shock (300° C, 4 hrs.) AMS-DTL-23053 No cracking
Heat resistance (250° C, 168 hrs.)
Elongation (%) ASTM D 638 200 min.
Longitudinal change (%) AMS-DTL-23053 -20 max.
Electrical:
Dielectric strength (volts/mil) ASTM D 876 200 min.
Volume resistivity (ohm-cm) ASTM D 876 1.0 X 1011 min.
Chemical:
Copper mirror corrosion (175° C, 16 hrs.) AMS-DTL-23053 No corrosion
Water absorption (%) ASTM D 570 0.5 max.
Fluid resistance (23° C, 24 hrs.)
Tensile strength (psi) AMS-DTL-23053 1200 min.
Flammability AMS-DTL-23053 15 sec. max.
Vacuum outgassing
TML, % ASTM E 595 1.0 max.
CVCM, % ASTM E 595 0.1 max.

*For reference use only

Sizes

Nominal Size ID Minimum (As Supplied) ID Maximum (After Recovery) Wall Thickness Nom (After Recovery)
Inches MM Inches MM Inches MM
1/8″ .125 3.2 .062 1.6 .031 0.80
3/16″ .187 4.8 .093 2.4 .035 0.90
1/4″ .250 6.4 .125 3.2 .035 0.90
3/8″ .375 9.5 .187 4.8 .035 0.90
1/2″ .500 12.7 .250 6.4 .035 0.90
3/4″ .750 19.1 .375 9.5 .042 1.10
7/8″ .875 22.2 .437 11.1 .049 1.20
1″ 1.00 25.4 .500 12.7 .049 1.20
1.25″ 1.25 31.8 .625 15.9 .055 1.40
1.5″ 1.50 38.1 .750 19.1 .055 1.40
