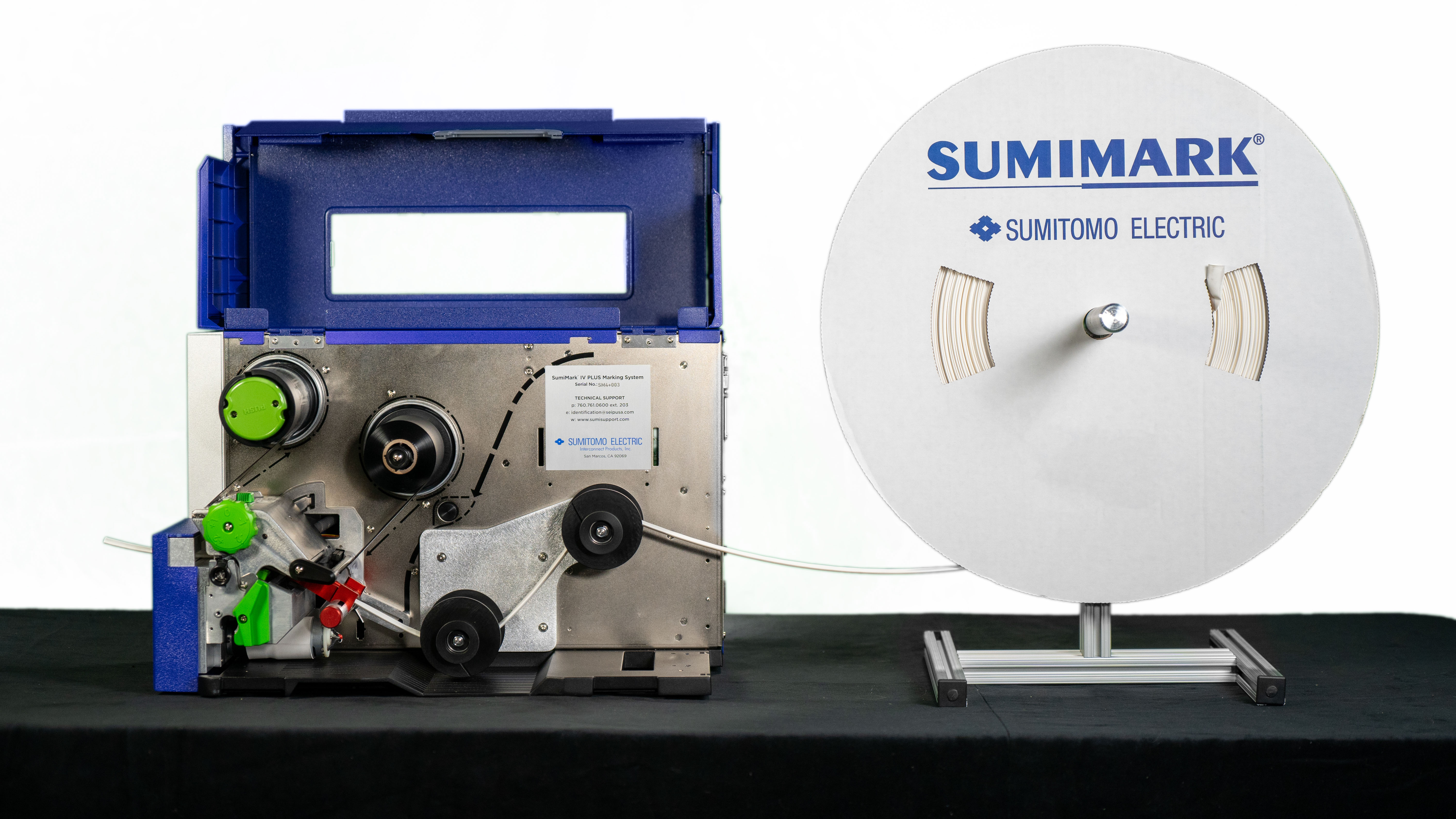

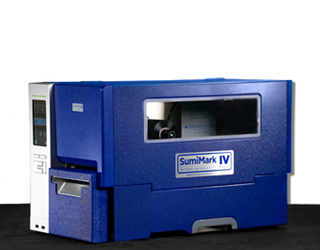

Sumimark IV PLUS Marking System

High Volume, Industrial Printer


Reliable, Cost Effective, Easy-to-Use, Thermal Transfer printer for heat shrink tube marking.

Product Overview

Order Part Number
Sumimark IV PLUS Marking System
Applications
Wire harness identification, flat panel marking, general and industrial identification
Print Resolution
300 DPI
Calibration
Auto Calibration
Label Materials
Polyolefin, Polyvinylidene Fluoride (Kynar), Viton/Flouroelastomer
Dimensions
10.9" W x 19.8" D x 12.8" H
Weight
35 lbs
Print Speed
12 IPS
Maximum Media Width
4.25 In
Maximum Media Length
14 Inches
Minimum Media Width
0.36 In
Minimum Media Length
0.125 In
Power Supply Voltage
100~240VAC 50~60Hz, 4-2A
Interface Options
Ethernet, USB 2.0
Media Sensor Types
Continuous, Gap, Black Bar
Display Type
Touch Screen and Button Navigation
Other
Integrated Cutter

Additional Information

Design Continuous
Mark Performance SAE-AS5942
Fluid Resistance MIL-STD-202G Method 215J
Recommended Printer -
Recommended Ribbon SM3 Black Standard, SM3 Super Ribbon, SM3 White Ribbon
Software Sumilabel

Basic Properties

  • Auto calibration positioning for fast media changes.
  • Convenient touch screen navigation panel.
  • Ethernet or USB communication.
  • Fully compatible with all SumiMark continuous and Sumitag formatted products.

*For reference use only
