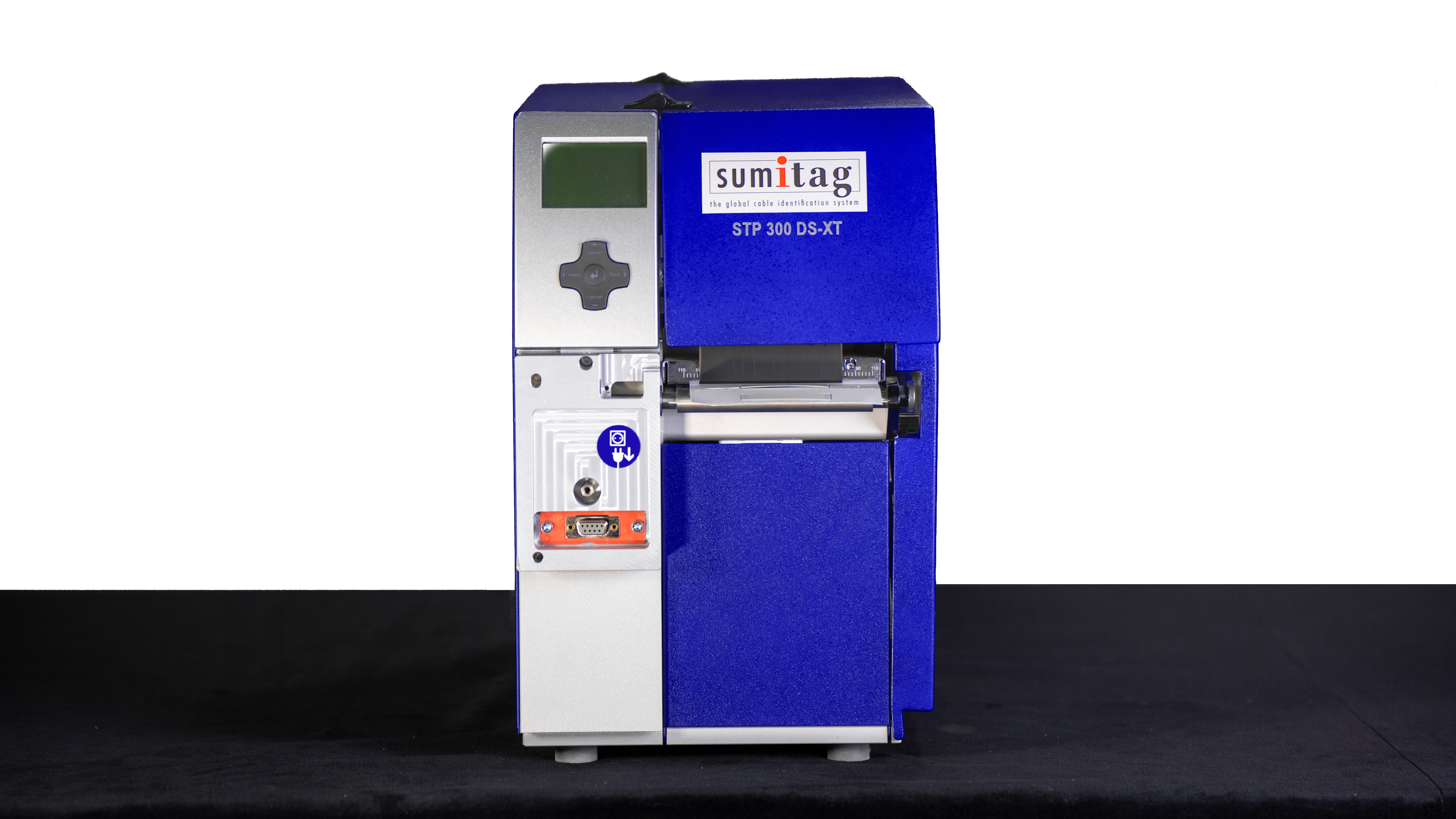

Sumitag DS-XT Marking System

Double Sided, Industrial Printer


Experience how our Sumitag line of printers and products can improve your operational efficiency!

Product Overview

Order Part Number
Sumitag DS-XT
Applications
Wire harness identification, flat panel marking, general and industrial identification
Print Resolution
300 DPI
Calibration
Auto Calibration
Label Materials
Polyolefin, Polyvinylidene Fluoride (Kynar), Viton/Flouroelastomer
Dimensions
15.5 in H x 9.75 in W x 22 in D
Weight
46 lbs.
Print Speed
5 IPS
Maximum Media Width
4.25 in
Maximum Media Length
6.5 ft
Minimum Media Width
0.36 in
Minimum Media Length
0.125 in
Power Supply Voltage
100 to 240 V @ 50 to 60 Hz
Interface Options
Ethernet, USB 2.0, USB Host
Media Sensor Types
Continuous, Gap, Lower Marker
Display Type
Touch Screen
Other

Basic Properties

  • Auto calibration positioning for fast media changes.
  • Convenient navigation panel.
  • Ethernet or USB communication.
  • Fully compatible with all Sumitag™ products.

*For reference use only
