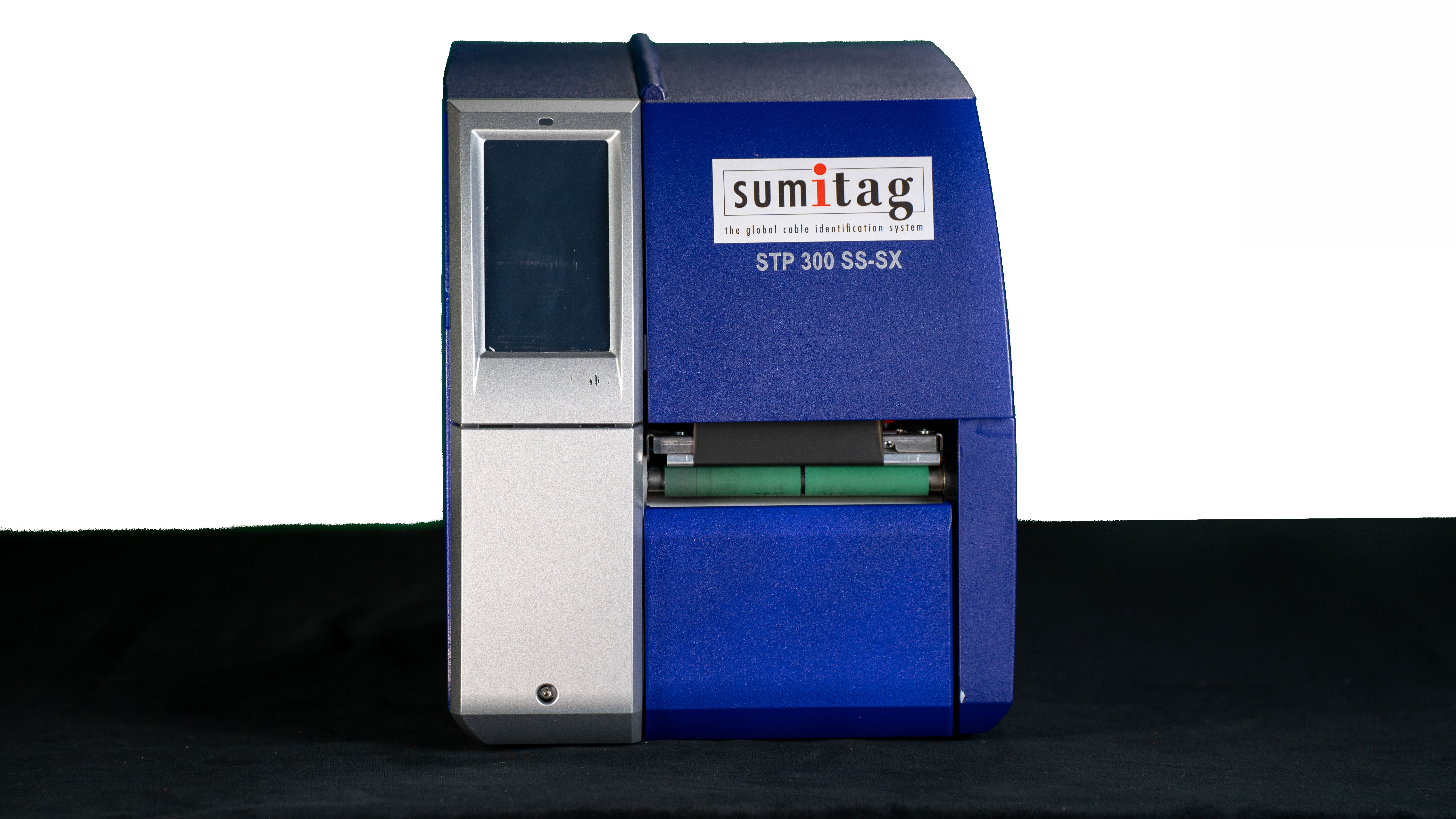

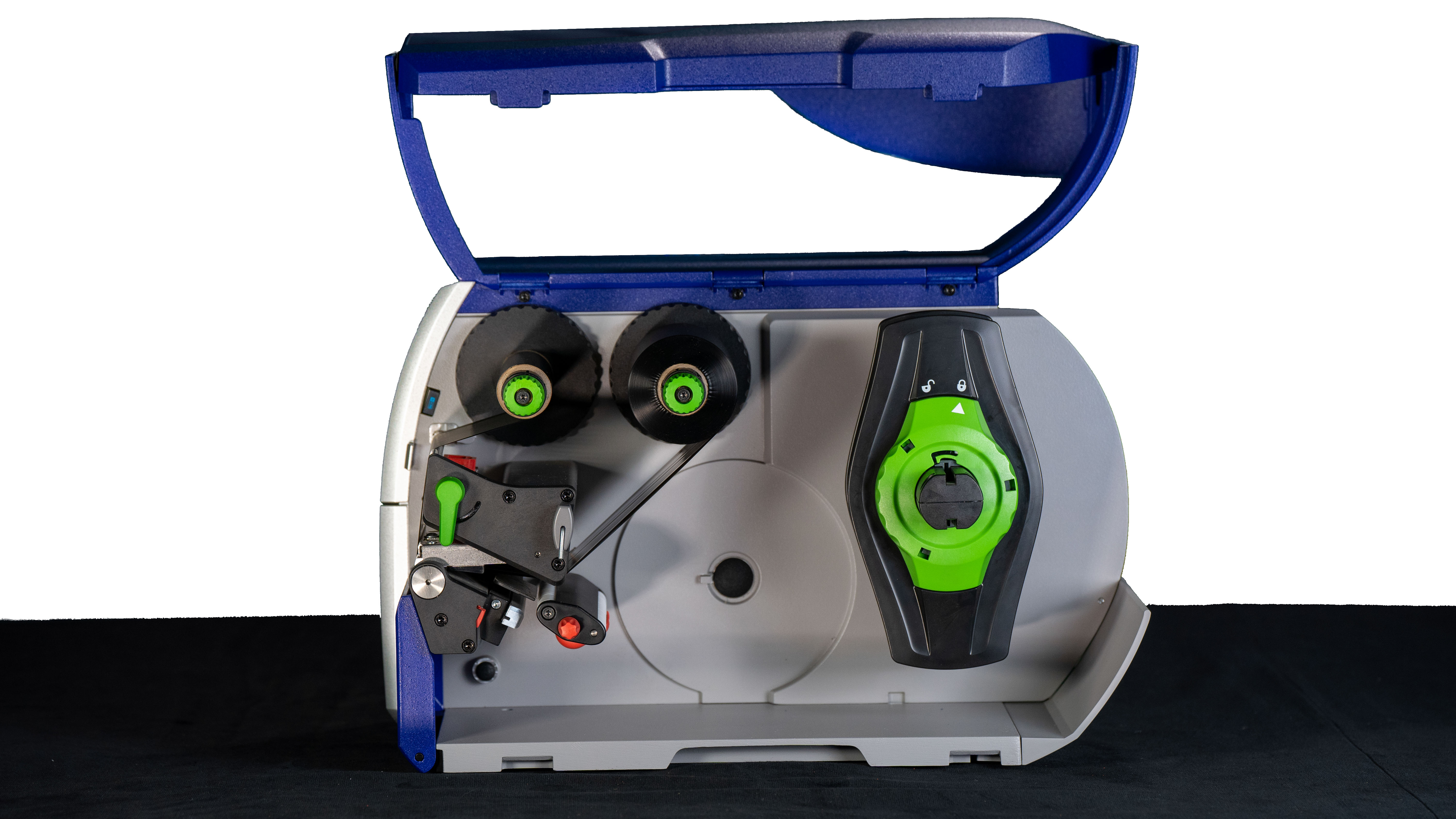

Sumitag SS-SX Marking System
High Volume, Industrial Printer
Experience how our Sumitag line of printers and products can improve your operational efficiency!
Product Overview
Order Part Number
Sumitag SS-SX
Applications
Wire harness identification, flat panel marking, general and industrial identification
Print Resolution
300 DPI
Calibration
Auto Calibration
Label Materials
Polyolefin, Polyvinylidene Fluoride (Kynar), Viton/Flouroelastomer, Raised Panel Labels, Vinyl, Polyester
Dimensions
9.65 in H x 16.22 D x 10.4 W
Weight
11 lbs
Print Speed
5 IPS
Maximum Media Width
4.25 in
Maximum Media Length
6.5 ft
Minimum Media Width
0.36 in
Minimum Media Length
0.125 in
Power Supply Voltage
100 – 240 VAC, 50/60 Hz
Interface Options
Ethernet, USB 2.0, USB Host
Media Sensor Types
Continuous, Gap, Lower Marker
Display Type
Touch Screen
Other
Basic Properties
- Auto calibration positioning for fast media changes.
- Convenient navigation panel.
- Ethernet or USB communication.
- Fully compatible with all Sumitag™ products.
*For reference use only
