H-HML-X (1-5) - Solder Termination Sleeve
Immersion resistant with Pre-installed Wire Lead, Shield Terminator, Environment Resistant Solder Device
Product Overview
Category
Solder Terminations Sleeves
H-HML Series
175°C (Max) rated, Immersion resistant with Pre-installed Wire Lead. Meets performance requirements of SAE-AS83519. RoHS
Material
INSULATION SLEEVE:HEAT-SHRINKABLE, RADIATION CROSSLINKED, MODIFIED POLWINYLIDENE FLUORIDE. COLOR = TRANSPARENT BLUE.MELTABLE SEALING RING:THERMALLY STABILIZED THERMOPLASTIC. COLOR = 2 BLUE SOLDER PREFORM:ALLOY - Sn96 WITH RED THERMOCHROMIC INDICATOR, MELTING POINT AT 221°C. PER IPC-J-STD-006.FLUX - ROM 1 TYPE RA FLUX FOR NICKEL APPLICATIONS. PER IPC-J-STD-004.PRE-INSTALLED WIRE LEAD TYPE:MIL-W-22759/ 41-20-90
Shrink Ratio
N/A
Shrink Temperature
N/A
Continuous operating temperature
-55℃ - +175℃
Flammability
N/A
Industry
Aerospace
Environmental compliance
RoHS compliant
Specifications/Approvals
Meets performance requirements of SAE-AS83519
Other
N/A
Basic Properties
| Sumitomo Part Number | L ∓ .070 | øD Minimum | øD1 Minimum |
|---|---|---|---|
| H-HML-1 | .650 | .075 | .105 |
| H-HML-2 | .650 | .105 | .145 |
| H-HML-3 | .650 | .170 | .200 |
| H-HML-4 | .750 | .235 | .255 |
| H-HML-5 | .750 | .275 | .300 |
*For reference use only
Sizes

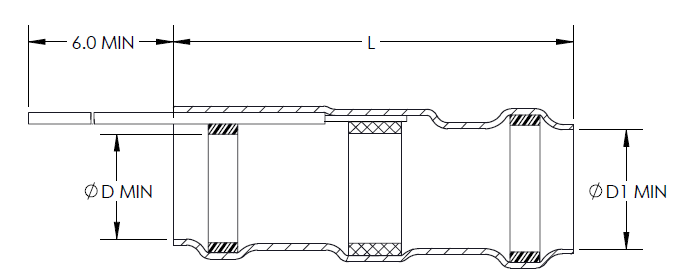

*Customer Drawing
