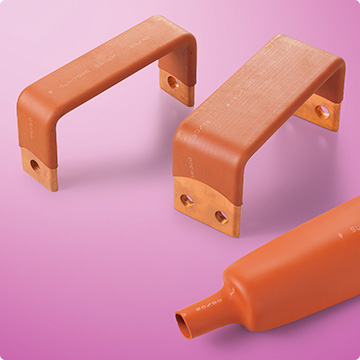

IRRAX™ SLEEVE SBI 350 - Heat-shrinkable tubing

Halogen-Free, Insulation for Busbars in Switchgear, Heat-Shrinkable tubing

SFP

Product Overview

Category
Heat-shrinkable tubing
Material
Cross-linked flexible flame-retarded polyolefin
Shrink ratio
2 : 1
Shrink temperature
min. 115℃
Continuous operating temperature
-40℃ to +120℃
Available colors
Red
Flammability
Flame Retarded
Printed surface text

SUMITOMO IRRAX SLEEVE SBI350 XX/YY HF
(XX/YY indicates nominal size)

Industry
Commercial, Insulation and Protection, Energy
Environmental compliance
RoHS
Specifications / Approvals

SFP

Other

Basic Properties

Property (Units) Test Method Requirement
Physical:
Tensile strength (before aging) ASTM D2671 min. 5.0MPa
Tensile strength (after aging) ASTM D2671 160℃ x 168 hours, min. 5.0 MPa
Elongation (before aging) ASTM D2671 min. 300%
Elongation (after aging) ASTM D2671 160℃ x 168 hours, min. 200%
Specific gravity ISO 1183 method A
Low temperature flexibility ASTM D2671 C -40℃ x 4 hours, no crack
Electrical:
Dielectric strength ASTM D2671, I5C243 min. 10.0kV/mm
Volume resistivity ASTM D150, I5C93
Dielectric constant ASTM D150, I5C250
Chemical:
Water absorption ISO 62 method 1 23℃ x 24 hours
Flammability UL 244 all tubing Pass
Shrinking temperature (start/finish)

*For reference use only

Sizes

Nominal Size Inside Diameter Wall Thickness Length
(mm) (mm) (m)
10/25mm 25.0 1.6 25
16/40mm 40.0 1.6 25
25/65mm 65.0 1.6 25
40/100mm 100.0 1.6 25
