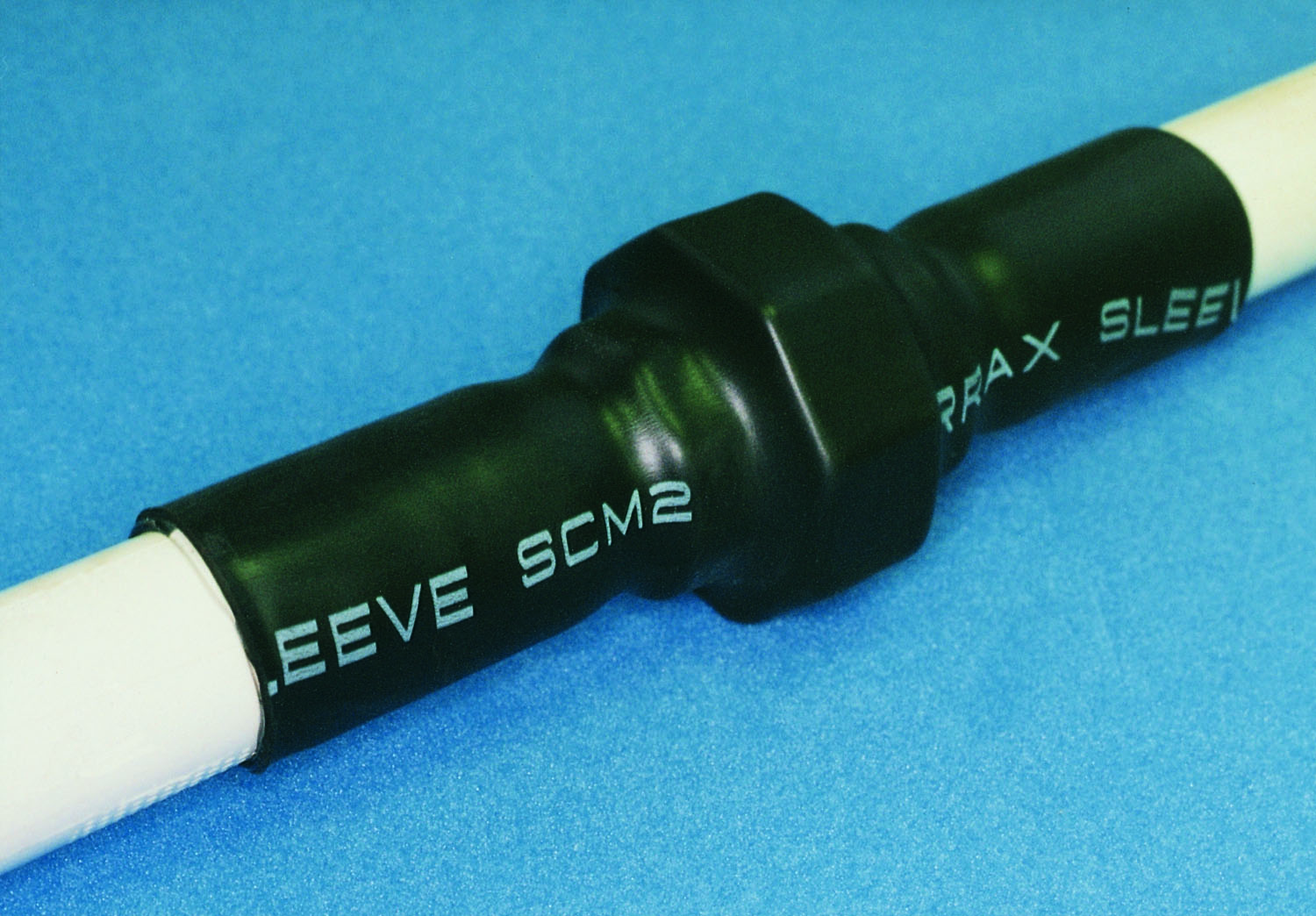

IRRAX™ SLEEVE SCM2 - Heat-shrinkable tubing
Medium Wall Polyofelin with Sealant High Shrink Ratio
Applications
- Wire Protection
- Fluid Resistance
- Strain Relief
- Abrasion Protection
Product Overview
Category
Heat-shrinkable tubing
Material
Cross-linked flexible polyolefin
Shrink ratio
3 : 1
Shrink temperature
100℃
Continuous operating temperature
-40℃ to +120℃
Available colors
Black
Flammability
Flame Retarded
Printed surface text
IRRAXSLEEVE SCM2 XX
Industry
Commercial, Insulation and Protection, Environmental Sealing, Energy, General Maintenance and Repair
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
–
Other
Basic Properties
| Property (Units) | Test Method | Requirement |
|---|---|---|
| Physical: | ||
| Tensile strength (psi) | ASTM D638 | 1500 min. |
| Elongation (%) | ASTM D638 | 350 min. |
| Low temperature flexibility (-40℃) | ASTM D2671 | No cracking |
| Heat shock (200℃, 4 hrs.) | ASTM D2671 | No cracking of outer wall |
| Heat resistance (150℃, 168 hrs.) | 80% of original value, min | |
| Tensile strength (psi) | 85% of original value, min | |
| Elongation (%) | AMS-DTL-23053 | 0 to -10 |
| Longitudinal change (%) | ||
| Electrical: | ||
| Dielectric strength (volts/mil) | ASTM D876 | 350 min. |
| Volume resistivity (ohm-cm) | ASTM D876 | 1.0 x 1013 min. |
| Chemical: | ||
| Water absorption (%) | ASTM D570 | 0.5 max. |
| Shrink temperature, nominal | 110℃ | |
*For reference use only
Sizes
| Standard Size | Inside Diameter (As Supplied) | Inside Diameter (After Recovery) | Wall Thickness Nom (After Recovery) | |||
|---|---|---|---|---|---|---|
| inches | (mm) | inches | (mm) | inches | (mm) | |
| 04 | .402 | 10.2 | .150 | 3.8 | .059 | 1.5 |
| 07 | .748 | 19.0 | .220 | 5.6 | 0.79 | 2.0 |
| 11 | 1.102 | 28.0 | .374 | 9.5 | .079 | 2.0 |
| 13 | 1.299 | 33.0 | .402 | 10.2 | 0.79 | 2.0 |
| 15 | 1.500 | 38.1 | .500 | 12.7 | 0.91 | 2.3 |
| 17 | 1.732 | 44.0 | .551 | 14.0 | 0.91 | 2.3 |
| 20 | 2.051 | 52.1 | .717 | 18.2 | 0.91 | 2.3 |
| 27 | 2.756 | 70.0 | 1.004 | 25.5 | 0.91 | 2.3 |
| 35 | 3.543 | 90.0 | 1.181 | 30.0 | 0.98 | 2.5 |
| 50 | 4.900 | 125.0 | 1.575 | 40.0 | .100 | 2.5 |
| Standard Colors: Black Standard Package: 4 feet (4′) How to Order: (Type of material) (Size) (Color) (Packaging) Example: SCM 04 Black 4′ |
||||||
