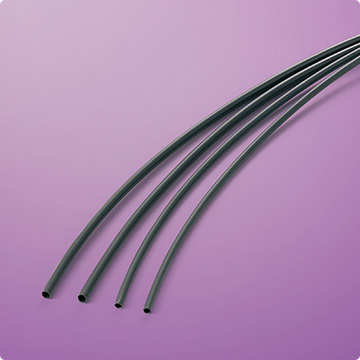

IRRAX™ TUBE B - Heat-shrinkable tubing

Irradiated Crosslinked Flexible Polyolefin Tubing, Flame Retarded

SFP standard (R1-0380)
Wall Type - SINGLE
Product PDF

Product Overview

Category
Heat-shrinkable tubing
Material
Flexible flame-retarant polyolefin
Shrink ratio
Shrink temperature
Continuous operating temperature
-45℃ to +120℃
Available colors
Black
Flammability
Flame Retarded
Printed surface text
Industry
Environmental compliance
RoHS/RoHS2
Specifications / Approvals

SFP standard (R1-0380)

Other

Basic Properties

Property (Units) Test Method Requirement
Physical:
Tensile strength (psi) ASTM D638 1200 min.
Elongation (%) ASTM D638 200 min.
Electrical:
Dielectric withstand voltage
(2.5 kV, 1 min.)
UL 224 No breakdown
Volume resistivity (ohm-cm) ASTM D876 1.0 x 1014 min.
Chemical:
Water absorption (23℃, 24 hrs), % ASTM D570 0.30 max.
Flammability FMVSS 302 Pass

*For reference use only

Sizes

Standard Size Inside Diameter Wall Thickness Length
(mm) (mm) (m)
0.7 x 0.35 0.70 +/- 0.10 0.35 +/-0.05 1,000 min
1 x 0.35 1.00 +/- 0.1 0.35 +/- 0.05 500 min
1.5 x 0.35 1.50 +/- 0.10 0.35 +/- 0.05 400 min
2 x 0.35 2.00 +/- 0.20 0.35 +/- 0.05 200 min
3 x 0.35 3.00 +/- 0.20 0.35 +/- 0.05 400 min
4 x 0.35 4.00 +/- 0.30 0.35 +/- 0.05 400 min
5 x 0.35 5.00 +/- 0.30 0.35 +/- 0.05 200 min
6 x 0.35 6.00 +/- 0.5 0.35 +/- 0.05 200 min
8 x 0.4 8.0 +/- 0.5 0.40 +/-0.05 100 min
10 x 0.4 10.0 +/- 0.5 0.40 +/-0.05 100 min
12 x 0.4 12.0 +/- 0.5 0.40 +/-0.05 100 min
14 x 0.4 14.0 +/- 0.5 0.50 +/-0.05 100 min
Standard Colors: Black
Standard Package: Spool (for unit length, see the above table)
How to Order: (Type of material) (Size) (Color) (Packaging)
Example: Irrax Tube B 10 x 0.4 Black 100m Spool
