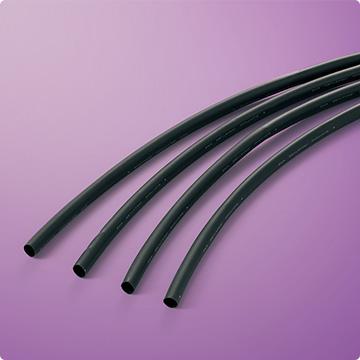

IRRAX™ TUBE ER2 - Heat-shrinkable tubing
Irradiated, Crosslinked Flexible Polyolefin Tubing, Flame Retarded
SFP standard (R1-2998)
Product Overview
Category
Heat-shrinkable tubing
Material
Flexible flame retarant polyolefin
Shrink ratio
Shrink temperature
Continuous operating temperature
-55℃ to +150℃
Available colors
Black
Flammability
Flame Retarded
Printed surface text
SUMITOMO IRRAXTUBE ER2
Industry
Rail/Transit, Insulation and Protection
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
SFP standard (R1-2998)
Other
Basic Properties
| Property (Units) | Test Method | Requirement |
|---|---|---|
| Physical: | ||
| Tensile strength (psi) | ASTM D638 | 2300 min. |
| Elongation (%) | ASTM D638 | 150 min. |
| Heat shock (200℃, 30 min) | No cracking | |
| Heat resistance (180℃, 200 hrs) | ||
| Tensile Strength (psi) | ASTM D638 | 1400 min. |
| Elongation (%) | ASTM D638 | 50 min. |
| Low temperature flex (-55℃, 4 hrs) | AMS-DTL-23053 | No cracking |
| Secant Modulus (psi) | ASTM D882 | 1.9 x 104 max. |
| Electrical: | ||
| Dielectric withstand Voltage (1000V, 1 min) |
UL 224 | No breakdown |
| Volume resistivity (ohm-cm) | ASTM D876 | 1.0 x 1010 min. |
| Chemical: | ||
| Fluid resistance (50℃, 20 hrs.) | UL 224 | No corrosion |
| Tensile Strength | ASTM D638 | 70% min of original |
| Elongation | ASTM D638 | 70% min of original |
| Flammability | UL 224 AFT | Pass |
*For reference use only
Sizes
| Standard Size | Inside Diameter | Wall Thickness | Length | |||
|---|---|---|---|---|---|---|
| (mm) | (mm) | (m) | ||||
| 6 x 0.45 | 6.0 +/- 0.5 | 0.45 +/-0.05 | 200 min | |||
| 8 x 0.45 | 8.0 +/- 0.5 | 0.45 +/-0.05 | 100 min | |||
| 10 x 0.45 | 10.0 +/- 0.5 | 0.45 +/-0.05 | 100 min | |||
| 12 x 0.45 | 12.0 +/- 0.5 | 0.45 +/-0.05 | 100 min | |||
| 14 x 0.45 | 14.0 +/- 1.5 | 0.45 +/-0.05 | 100 min | |||
| 18 x 0.45 | 18.0 +/- 1.5 | 0.45 +/-0.05 | 100 min | |||
| 20 x 0.45 | 20.0 +/- 2.0 | 0.65 +/-0.10 | 50 min | |||
| Standard Colors: Black Standard Package: Coil (for Unit length, see the above table) How to Order: (Type of material) (Size) (Color) (Packaging) Example: Irraxtube ER2 10 x 0.45 Black 100m coil |
||||||
