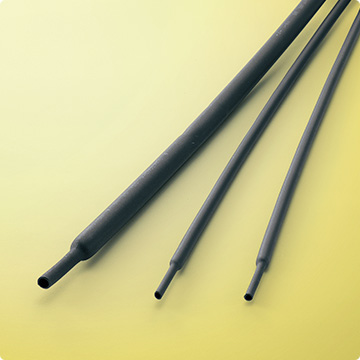

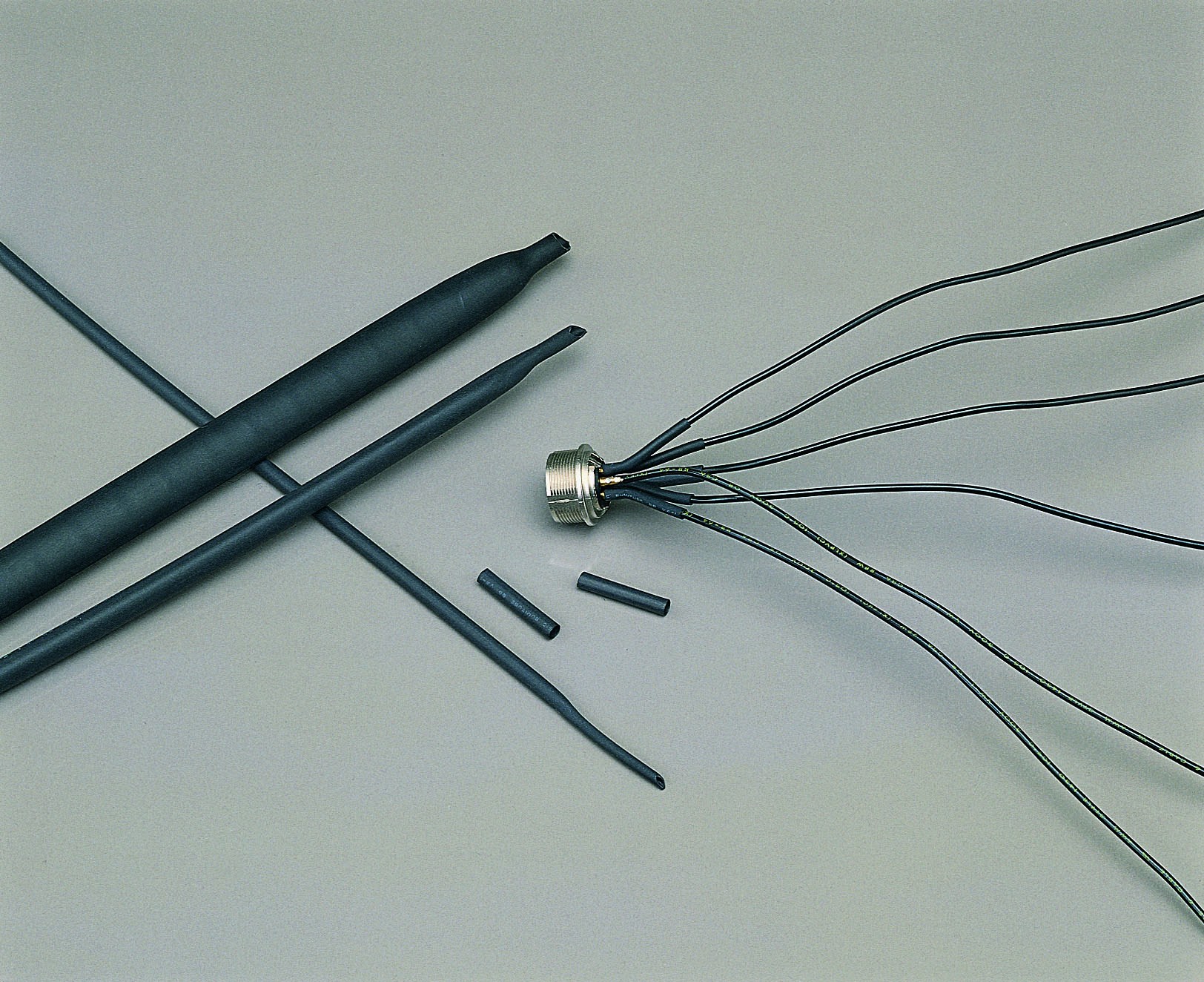

SUMITOMO-K CSA SR HS X PO TUBING 125℃ SUMITUBE
UL
CSA
Property (Units) | Test Method | Requirement |
---|---|---|
Physical: | ||
Tensile strength (psi) | ASTM D638 | 2000 min. |
Elongation (%) | ASTM D638 | 200 min. |
Specific gravity | ASTM D792 | 1.45 max. |
Heat shock (250℃, 4 hrs) | AMS-DTL-23053 | No cracking |
Heat resistance (175℃, 168 hrs.) | ||
Elongation (%) | ASTM D638 | 100 min. |
Secant modulus (psi) | ASTM D882 | 25000 |
Deformation (125℃, 1 Hr.) (%) | UL 224 | 50 max. |
Longitudinal change (%) | AMS-DTL-23053 | +5, -5 |
Electrical: | ||
Dielectric strength (volts/mil) | ASTM D876 | 500 min. |
Volume resistivity (ohm-cm) | ASTM D876 | 1.0 x 1014 min. |
Chemical: | ||
Corrosion (175℃, 16 hrs.) | AMS-DTL-23053 | No corrosion |
Copper stability (158℃, 168 Hrs.) | ||
Elongation (%) | UL 224 | 100 min. |
Water absorption (%) | ASTM D570 | 0.5 max. |
Fluid resistance (23℃, 24 hrs.) | ||
Tensile strength (psi) | AMS-DTL-23053 | 1000 min. |
Flammability | UL 224 VW-1 | Pass |
Shrink temperature, nominal | 130℃ |
Specification reference: UL-224 125℃, 600V, VW-1
File E48762 YDPU2, Cat. No. SUMITUBE B8 or 838
CSA C-22.2 No. 198-M1982, 125℃, 600V
File LR 33298 Guide 400-U-9
Marking: SUMITUBE B8 is surface printed with recognized UL and CSA marking.
*For reference use only
Standard Size | Inside Diameter (As Supplied) | Inside Diameter (After Recovery) | Wall Thickness Nom (After Recovery) | |||
---|---|---|---|---|---|---|
inches | (mm) | inches | (mm) | inches | (mm) | |
3/64″ | .046 | 1.2 | .023 | 0.6 | .020 | 0.51 |
1/16″ | .063 | 1.6 | .031 | 0.8 | .020 | 0.51 |
3/32″ | .093 | 2.4 | .046 | 1.2 | .020 | 0.51 |
1/8″ | .125 | 3.2 | .062 | 1.6 | .020 | 0.51 |
3/16″ | .187 | 4.8 | .093 | 2.4 | .025 | 0.64 |
1/4″ | .250 | 6.4 | .125 | 3.2 | .025 | 0.64 |
3/8″ | .375 | 9.5 | .187 | 4.8 | .030 | 0.76 |
1/2″ | .500 | 12.7 | .250 | 6.4 | .030 | 0.76 |
3/4″ | .750 | 19.1 | .375 | 9.5 | .030 | 0.76 |
1″ | 1.000 | 25.4 | .500 | 12.7 | .035 | 0.89 |
Standard colors: Standard Colors: Black and White Standard Package: 4 feet (4′) How to Order: (Type of material) (Size) (Color) (Packaging) Example: B8 1/4 Black 4′ |
