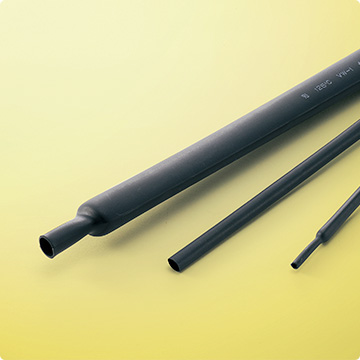

SUMITUBE™ F2(Z) - Heat-shrinkable tubing

Flexible Polyolefin 2 : 1 Shrink Ratio PBDE - Free

UL / CSA
Wall Type - SINGLE

Applications

  • Wire Protection
  • Fluid Resistance
  • Strain Relief
  • Abrasion Protection
Product PDF

Product Overview

Category
Heat-shrinkable tubing
Material
Flexible polyolefin
Shrink ratio
2 : 1
Shrink temperature
90℃
Continuous operating temperature
-55℃ to +125℃
Available colors
Black, Red, Yellow, White
Flammability
Flame Retarded
Printed surface text

Made in Japan:
125℃ VW-1 SUMITOMO-K SUMITUBE F2 (Z) CAT 940 CSA 125℃ VW-1 -F-
Made in China:
125℃ VW-1 SUMITOMO-SZ SUMITUBE F2 (Z) CAT 940 CSA 125℃ VW-1 -F-

Industry
Automotive, Commercial, Rail/Transit, Insulation and Protection, Heavy Equipment
Environmental compliance
RoHS/RoHS2
Specifications / Approvals

UL
CSA

Other
Sumito F (z) shrink graph

Basic Properties

Property (Units) Test Method Requirement
Physical:
Tensile strength (psi) UL 224 1500 min.
Elongation (%) UL 224 200 min.
Specific gravity ASTM D792 1.35 max.
Low temperature flex (-55℃) AMS-DTL-23053 No cracking
Heat resistance (158℃, 168 hrs.)
Elongation (%) UL 224 100 min.
Secant modulus (psi) ASTM D882 25000 min.
Deformation (125℃, 1 Hr.) (%) UL 224 50 max.
Longitudinal change (%) AMS-DTL-23053 +5, -5
Electrical:
Dielectric strength (volts/mil) UL 224 2500 min.
Volume resistivity (ohm-cm) UL 224 1.0 x 1014 min.
Chemical:
Corrosion UL 224 No corrosion
Copper stability (158℃, 168 Hrs.)
Elongation (%) UL 224 100 min.
Water absorption (%) ASTM D570 0.5 max.
Flammability UL 224 VW-1 Pass
Shrink temperature, nominal 90℃

Specification reference: UL 224 125℃, 600V, VW-1
File E48762 YDPU2
CSA-C22.2 No. 198-M1986 125℃, 600V
File LR33298
Marking: SUMITUBE F2(Z) is surface printed with recognized UL / CSA markings.

*For reference use only

Sizes

Standard Size Inside Diameter (As Supplied) Inside Diameter (After Recovery) Wall Thickness Nom (After Recovery)
inches (mm) inches (mm) inches (mm)
3/64″ .046 1.2 .023 0.6 .016 0.40
1/16″ .063 1.6 .031 0.8 .017 0.43
3/32″ .093 2.4 .046 1.2 .020 0.51
1/8″ .125 3.2 .062 1.6 .020 0.51
3/16″ .187 4.8 .093 2.4 .020 0.51
1/4″ .250 6.4 .125 3.2 .025 0.64
3/8″ .375 9.5 .187 4.8 .025 0.64
1/2″ .500 12.7 .250 6.4 .025 0.64
3/4″ .750 19.1 .375 9.5 .030 0.76
1″ 1.000 25.4 .500 12.7 .035 0.89
1-1/2″ 1.500 38.1 .750 19.1 .040 1.02
2″ 2.000 50.8 1.000 25.4 .045 1.14
3″ 3.000 76.2 1.500 38.1 .050 1.27
4″ 4.000 101.6 2.000 50.8 .055 1.40
Standard Colors: Black, White, Red, Yellow (Other colors subject to factory acceptance and quote)
Standard Package: Spooled (S) or 4 foot lengths (4′). Note: Metric sizes also available per factory quote.
How to Order: (Type of material) (Size) (Color) (Packaging)
Example: F2(Z) 1/4 Black S
