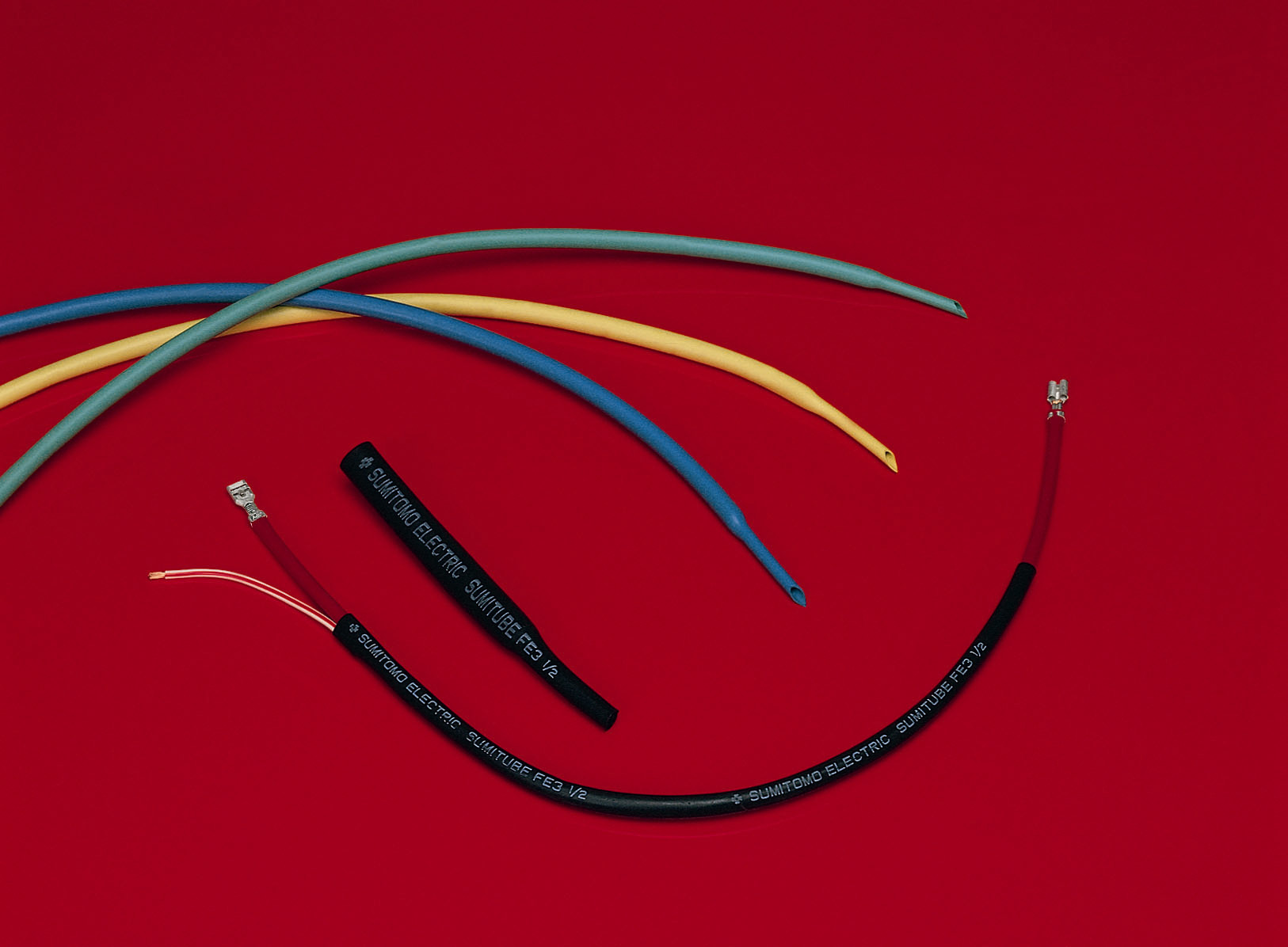

SUMITUBE™ FE3 - Heat-shrinkable tubing
Flexible Fluoroelastomer, 2 : 1 Shrink Ratio
SAE AS 23053/13
Applications
- Wire Protection
- Fluid Resistance
- Strain Relief
- Abrasion Protection
Product Overview
Category
Heat-shrinkable tubing
Material
Rubber-like, highly fluid resistant
Shrink ratio
2 : 1
Shrink temperature
120℃
Continuous operating temperature
-40℃ to +200℃ and up to 300℃ for short periods
Available colors
Black
Flammability
Flame Retarded
Printed surface text
Industry
Aerospace, Insulation and Protection, Chemical and Fluid Resistance
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
AS23053
Other
Basic Properties
| Property (Units) | Test Method | Requirement |
|---|---|---|
| Physical: | ||
| Tensile strength (psi) | ASTM D638 | 1200 min. |
| Elongation (%) | ASTM D638 | 250 min. |
| Tensile stress @ 200% elongation (psi) | ASTM D412 | 2000 max. |
| Cold impact (-40℃) | ASTM D746 | No cracking |
| Heat shock (300℃, 4 hrs.) | AMS-DTL-23053 | No cracking |
| Heat resistance (250℃, 168 hrs.) | ||
| Elongation (%) | ASTM D638 | 200 min. |
| Tensile strength (psi) | ASTM D638 | 1200 min. |
| Longitudinal change (%) | AMS-DTL-23053 | -20 max. |
| Electrical: | ||
| Dielectric withstand (volts/mil) | ASTM D876 | 200 min. |
| Volume resistivity (ohm-cm) | ASTM D876 | 1.0 x 1011 min. |
| Chemical: | ||
| Copper mirror corrosion (175℃, 16 hrs.) | AMS-DTL-23053 | No corrosion |
| Water absorption (%) | ASTM D570 | 0.5 max. |
| Fluid resistance (23℃, 24 hrs.) | ||
| Tensile strength (psi) | AMS-DTL-23053 | 1200 min. |
| Elongation (%) | AMS-DTL-23053 | 250 min. |
| Flammability | AMS-DTL-23053 | 15 sec. max. |
| Shrink temperature, nominal | 120℃ | |
Specification reference: AMS-DTL-23053/13
MIL-R-46846, Type III, Class 1 (with exception to wall thickness)
NASA SP-R-0022A
*For reference use only
Sizes
| Nominal Size | Inside Diameter (As Supplied) | Inside Diameter (After Recovery) | Wall Thickness Nom (After Recovery) | |||
|---|---|---|---|---|---|---|
| inches | (mm) | inches | (mm) | inches | (mm) | |
| 1/8″ | .125 | 3.2 | .062 | 1.6 | .031 | 0.80 |
| 3/16″ | .187 | 4.8 | .093 | 2.4 | .035 | 0.90 |
| 1/4″ | .250 | 6.4 | .125 | 3.2 | .035 | 0.90 |
| 3/8″ | .375 | 9.5 | .187 | 4.8 | .035 | 0.90 |
| 1/2″ | .500 | 12.7 | .250 | 6.4 | .035 | 0.90 |
| 5/8″ | .625 | 15.9 | .312 | 7.9 | .042 | 1.10 |
| 3/4″ | .750 | 19.1 | .375 | 9.5 | .042 | 1.10 |
| 7/8″ | .875 | 22.2 | .437 | 11.1 | .049 | 1.20 |
| 1″ | 1.000 | 25.4 | .500 | 12.7 | .049 | 1.20 |
| 1-1/4″ | 1.250 | 31.8 | .625 | 15.9 | .055 | 1.40 |
| 1-1/2″ | 1.500 | 31.8 | .750 | 19.1 | .055 | 1.40 |
| 2″ | 2.000 | 50.8 | 1.000 | 25.4 | .065 | 1.70 |
| Standard Colors: Black. Other colors available subject to factory acceptance and quote. Standard Package: Spooled (S) How to Order: (Type of material) (Size) (Color) (Packaging) Example: FE3 1/4 Black S |
||||||
