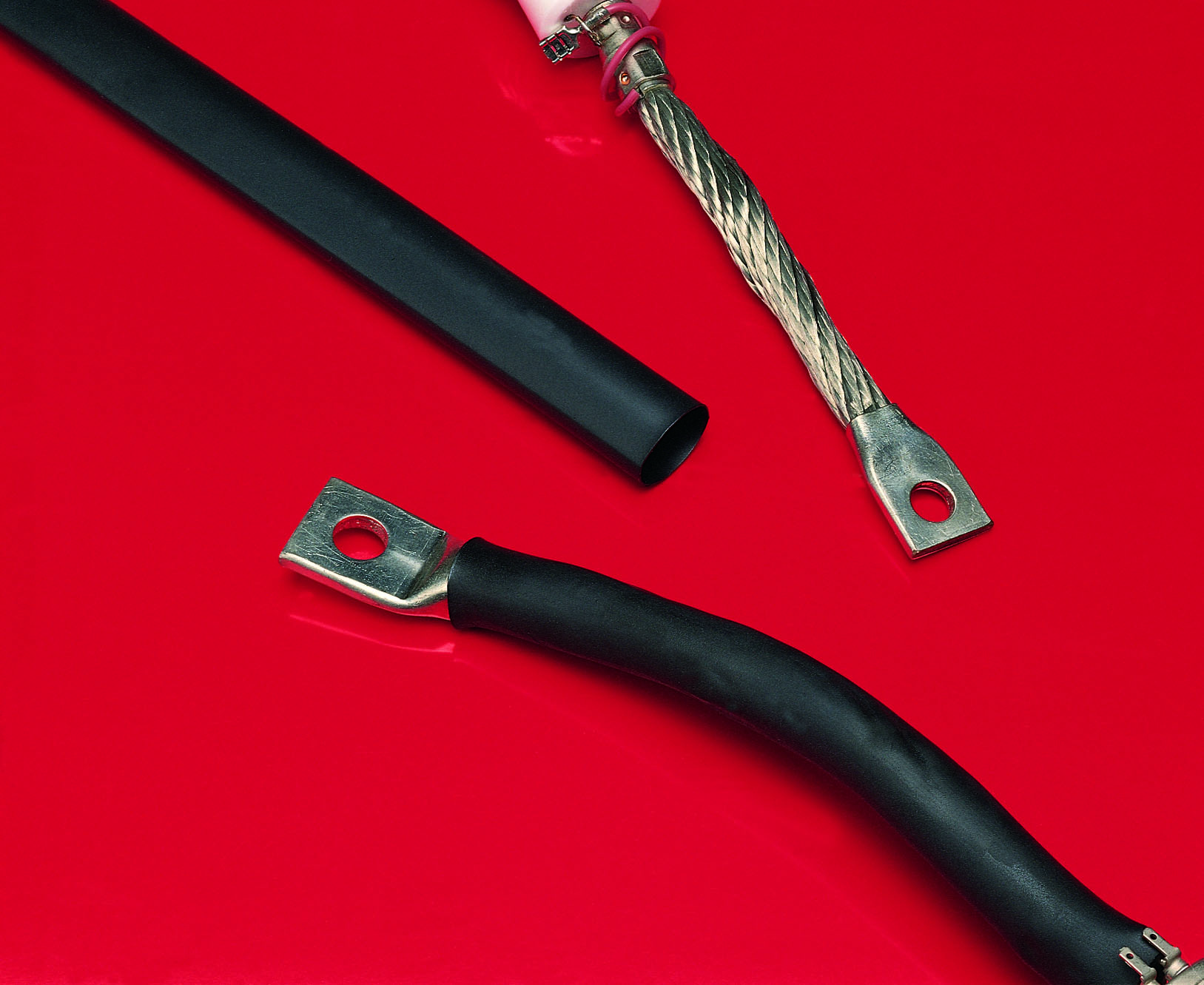

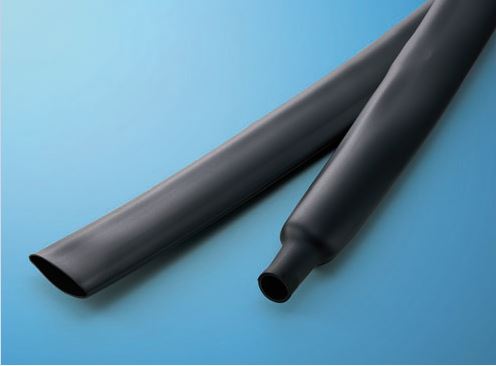

SUMITUBE™ R10 - Heat-shrinkable tubing
Flexible Chlorinated Polyolefin, 2 : 1 Shrink Ratio
SAE AS 23053/1, Class 1 and Class 2
Applications
- Wire Protection
- Fluid Resistance
- Strain Relief
- Abrasion Protection
Product Overview
Category
Heat-shrinkable tubing
Material
Flexible chlorinated polyolefin
Shrink ratio
2 : 1
Shrink temperature
150℃
Continuous operating temperature
-75℃ to +120℃ and up to 200℃ for short durations
Available colors
Black
Flammability
Flame Retarded
Printed surface text
–
Industry
Aerospace, Insulation and Protection, Chemical and Fluid Resistance, General Maintenance and Repair
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
AS23053
Other
Basic Properties
| Property (Units) | Test Method | Requirement |
|---|---|---|
| Physical: | ||
| Tensile strength (psi) | ASTM D638 | 1500 min. |
| Elongation (%) | ASTM D638 | 250 min. |
| Specific gravity | ASTM D792 | 1.3 max. |
| Low temperature flex (-75℃) | AMS-DTL-23053 | No cracking |
| Heat shock (200℃, 4 hrs.) | AMS-DTL-23053 | No cracking |
| Heat resistance (150℃, 168 hrs.) | ||
| Elongation (%) | ASTM D638 | 200 min. |
| Tensile stress @ 200% elongation (psi) | ASTM D412 | 2500 max. |
| Longitudinal change (%) | AMS-DTL-23053 | +1, -10 |
| Electrical: | ||
| Dielectric strength (volts/mil) | ASTM D876 | 300 min. |
| Volume resistivity (ohm-cm) | ASTM D876 | 1.0 x 1011 min. |
| Chemical: | ||
| Corrosion (150℃, 16 hrs.) | AMS-DTL-23053 | No corrosion |
| Water absorption (%) | ASTM D570 | 1.0 max. |
| Fluid resistance (23℃, 24 hrs.) | ||
| Tensile strength (psi) | AMS-DTL-23053 | 1000 min. |
| Flammability | AMS-DTL-23053 | Pass |
| Shrink temperature, nominal | 150℃ | |
Specification reference: AMS-DTL-23053/1, Class 1 and Class 2
*For reference use only
Sizes
| Standard Size | Inside Diameter (As Supplied) | Inside Diameter (After Recovery) | Wall Thickness Nom (After Recovery) | |||
|---|---|---|---|---|---|---|
| inches | (mm) | inches | (mm) | inches | (mm) | |
| 1/8″ * | .125 | 3.2 | .062 | 1.6 | .027 | 0.70 |
| 3/16″ * | .187 | 4.8 | .093 | 2.4 | .033 | 0.84 |
| 1/4″ | .250 | 6.4 | .143 | 3.6 | .035 | 0.90 |
| 3/8″ | .375 | 9.5 | .211 | 5.4 | .040 | 1.00 |
| 1/2″ | .500 | 12.7 | .286 | 7.3 | .048 | 1.20 |
| 5/8″ | .625 | 15.9 | .357 | 9.1 | .051 | 1.30 |
| 3/4″ | .750 | 19.1 | .428 | 10.9 | .057 | 1.40 |
| 7/8″ | .875 | 22.2 | .500 | 12.7 | .065 | 1.65 |
| 1″ | 1.000 | 25.4 | .570 | 14.5 | .070 | 1.80 |
| 1-1/4″ | 1.250 | 31.8 | .714 | 18.1 | .087 | 2.20 |
| 1-1/2″ | 1.500 | 38.1 | .857 | 21.8 | .095 | 2.41 |
| 1-3/4″ | 1.750 | 44.5 | 1.000 | 25.4 | .107 | 2.71 |
| 2″ | 2.000 | 50.8 | 1.140 | 29.0 | .110 | 2.79 |
| Standard Colors: Black Standard Package: Spooled (S) How to Order: (Type of material) (Size) (Color) (Packaging) Example: R10 1/4 Black S |
||||||
* Non MIL-Spec sizes (cannot cert to MIL spec)
