SUMITUBE™ W5DL - Heat-shrinkable tubing
Dual Wall Semi-Rigid Polyolefin, Encapsulant Lined, 2.5 : 1 Shrink Ratio
SAE AS 23053/4, Class 1 /
UL 224

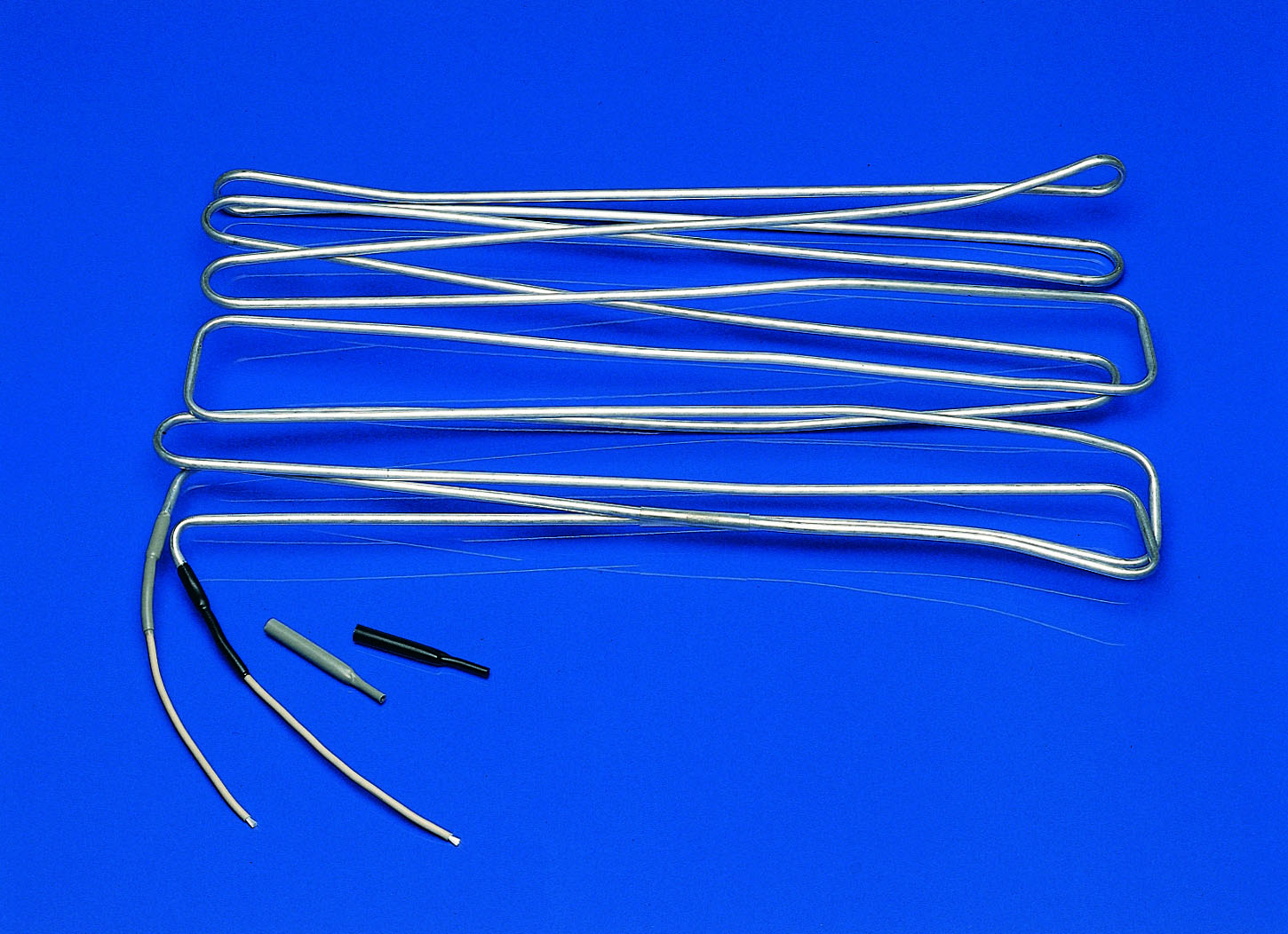

Applications
- Wire Protection
- Fluid Resistance
- Strain Relief
- Abrasion Protection
Product Overview
Category
Heat-shrinkable tubing
Material
Semi-rigid polyolefin
Shrink ratio
2.5 : 1
Shrink temperature
140℃
Continuous operating temperature
-55℃ to +110℃
Available colors
Black, Brown, Red, Yellow, Blue, Gray, White
Flammability
Non Flame Retarded
Printed surface text
–
Industry
Commercial, Rail/Transit, Environmental Sealing, Chemical and Fluid Resistance
Environmental compliance
RoHS/RoHS2
Specifications / Approvals
AS23053
UL 224
Other
Basic Properties
| Property (Units) | Test Method | Requirement |
|---|---|---|
| Physical: | ||
| Tensile strength (psi) | ASTM D638 | 1500 min. |
| Elongation (%) | ASTM D638 | 200 min. |
| Cold impact (-55℃) | ASTM D746 | No cracking |
| Heat shock (250℃, 4 hrs.) | AMS-DTL-23053 | No cracking |
| Secant modulus (psi) | ASTM D882 | 2.5 x 104 min. |
| Longitudinal change (%) | AMS-DTL-23053 | +1, -10 |
| Electrical: | ||
| Dielectric strength (volts/mil) | ASTM D2671 | 500 min. |
| Volume resistivity (ohm-cm) | ASTM D876 | 1 x 1015 min. |
| Chemical: | ||
| Corrosion (121℃, 16 Hrs.) | AMS-DTL-23053 | No corrosion |
| Water absorption (%) | ASTM D570 | 0.5 max. |
| Fluid resistance (23℃, 24 hrs.) | ||
| Tensile strength (psi) | AMS-DTL-23053 | 1000 min. |
| Flammability | N/A | |
| Shrink temperature, nominal | 140℃ | |
Specification reference: AMS-DTL-23053/4, Class 1
UL 224, File E75077, 600 V, 125℃ (not flame-retarded)
*For reference use only
Sizes
| Standard Size | Inside Diameter (As Supplied) | Inside Diameter (After Recovery) | Wall Thickness Nom (After Recovery) | |||
|---|---|---|---|---|---|---|
| inches | (mm) | inches | (mm) | inches | (mm) | |
| 1/8″ | .125 | 3.2 | .023 | 0.6 | .038 | 0.97 |
| 3/16″ | .187 | 4.8 | .060 | 1.5 | .043 | 1.10 |
| 1/4″ | .250 | 6.4 | .080 | 2.0 | .047 | 1.20 |
| 3/8″ | .375 | 9.5 | .135 | 3.4 | .050 | 1.27 |
| 1/2″ | .500 | 12.7 | .195 | 5.0 | .055 | 1.40 |
| 3/4″ | .750 | 19.1 | .313 | 8.0 | .065 | 1.65 |
| 1″ | 1.000 | 25.4 | .400 | 10.2 | .075 | 1.91 |
| Standard Colors: Black, White, Red, Yellow, Blue, Brown, Gray Standard Package: 4 feet (4′) How to Order: (Type of material) (Size) (Color) (Packaging) Example: W5DL 1/4 Black 4′ |
||||||
