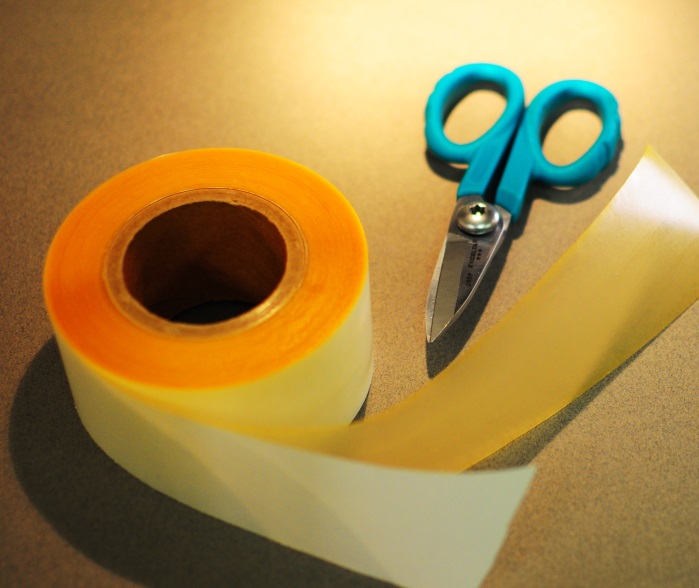

DPX - 1 TAPE - Heat-shrinkable tubing

Thermoplastic Hot - Melt Adhesive Tap

Wall Type - DUAL

Applications

  • Wire Protection
  • Fluid Resistance
  • Strain Relief
  • Abrasion Protection
Product PDF

Product Overview

Category
Heat-shrinkable tubing
Material
Thermoplastic adhesive
Shrink ratio
1 : 1
Shrink temperature
Continuous operating temperature
-55℃ to +110℃
Available colors
Flammability
Non Flame Retarded
Printed surface text
Industry
Commercial, Aerospace, General Maintenance and Repair
Environmental compliance
RoHS/RoHS2
Specifications / Approvals

Other

Basic Properties

Property (Units) Test Method Requirement
Physical:
Specific gravity ASTM D792 0.05 ∓ 0.97
Elongation (%) ASTM D638 350 min.
Softening point ( ℃ ) ASTM E28 10 ∓ 100
Water absorption ( % ) 23℃, 24 hrs. ASTM D570 0.5 max.

*For reference use only

Sizes

Width Thickness Length
(mm) inches (mm) inches (m) (ft)
50 1.97 0.3 0.012 200 656
Standard Colors: Transparent ( pale amber )
Standard Package: Spooled, with release paper backing.
How to Order: (Type of material) (Size) (Packaging)
Example: DPX – 1 50 mm / 0.3 mm SPL
