Identification

Sumitomo Electric Interconnect Products Inc. offers a comprehensive selection of formatted and continuous style heat shrinkable products, perfect for applications whereby kitting and established manufacturing procedures are required.
All products are RoHS compliant.

Sumitomo Electric Interconnect Products Inc. also offers a line of non-shrinkable identification products for applications within the industrial and commercial markets.

Sumitag Demo

Watch our video to explore how Sumitag products can save you time and money.

Sumitag Products

Formatted Sleeves
Product name
Features
Specifications / Approvals
Continuous operating temperature
Sizes
Shrink ratio
Available colors

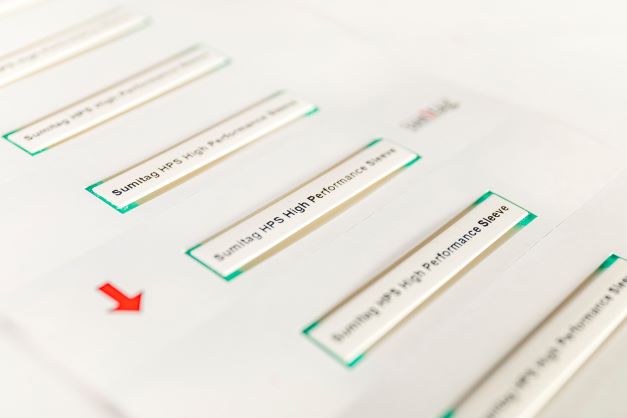

Mil-Spec Polyolefin
NSA 937201MR
-55° C to +135° C
3/32" to 2"
2:1
Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Purple, Gray, White
Mil-Spec Polyolefin
-
-55° C to +135° C
3/32" to 2"
3:1
Yellow

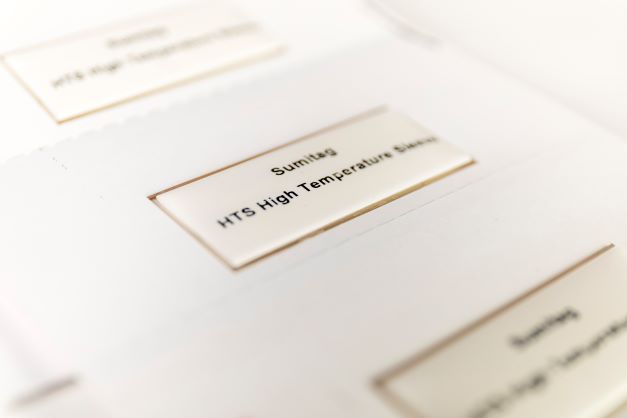

High Temperature Rated, Polyvinylidene Fluoride
-
-55° C to +225ۥ C
1/8" to 1.5"
2:1
White

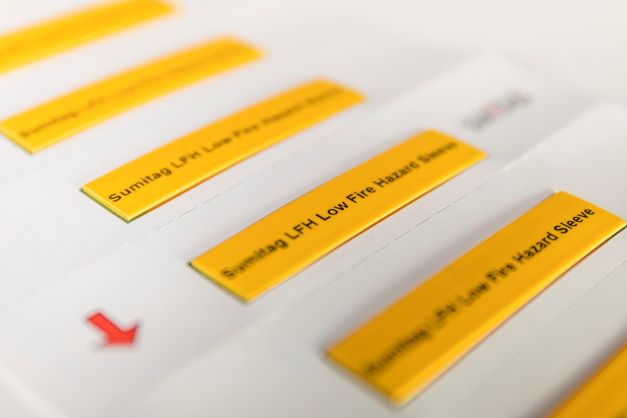

Flame Retardant, Zero Halogen, Low Smoke, Low Toxicity, Cross Linked, UV stabilized, Polyolefin.
DEF STAN 59-97, issue 3, Type 8 LUL Standard 1-085 (Limited, Dispersed usage) (Formerly LUL 2-01001-002) BS6853 - Vehicle Cat. 1a EN45545 (HL1, HL2 and HL3) LUL 2-01001-002 (E1042A6)
-40° C to +105° C
3/32" to 2"
2:1
Yellow, White

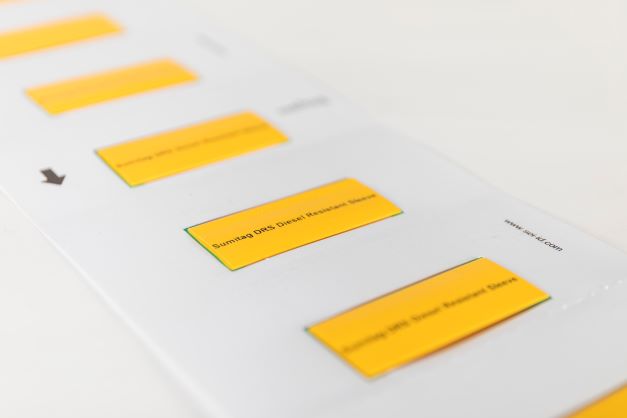

Mil-Spec Diesel Resistant Polyolefin
Meets SNCF Spec. NF-F00-608 type H BS 4G198, Part 3, Type 10A
-55° C to +135° C
1/8" to 2"
3:1
Yellow, White

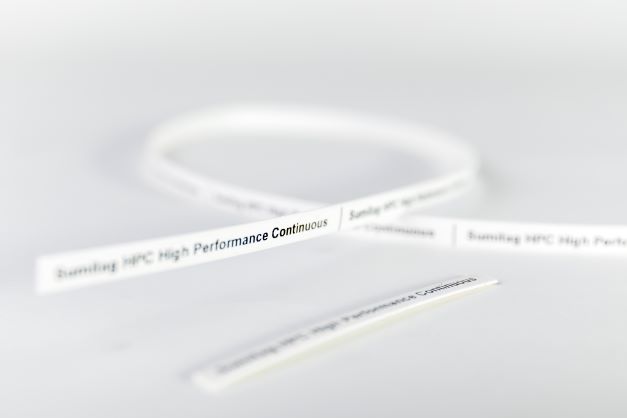

Continuous Spool Sleeves
Product name
Features
Specifications / Approvals
Continuous operating temperature
Sizes
Shrink ratio
Available colors
Mil-Spec Polyolefin
-
-55° C to +135° C
1/16" to 2"
2:1
Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Purple, Gray, White
Mil-Spec Polyolefin
-
-55° C to +135° C
1/16" to 2"
3:1
Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Purple, Gray, White

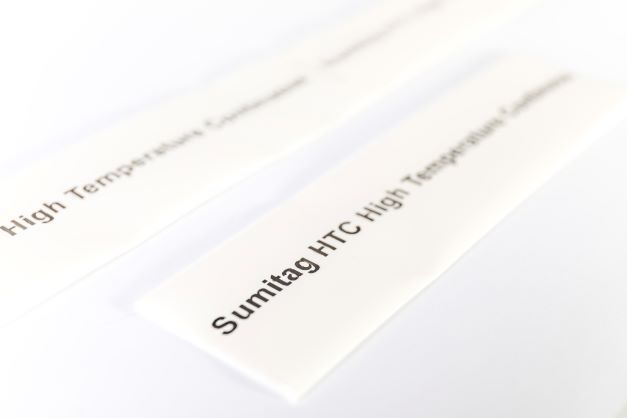

High Temperature Rated, Polyvinylidene Fluoride
UL224 VW-1 Flammability
-55° C to +225° C
1/8" to 1.5"
2:1
White
Highly Fluid Resistant, Flame Retarded, Fluoroelastomer Tubing
NASA-SP-R-0022A BS 6746 C BS 4G198, Part 3, Type 12A DEF STAN 59-97, Type 4a
-55° C to +200° C
1/8" to 2"
2:1
Black, White

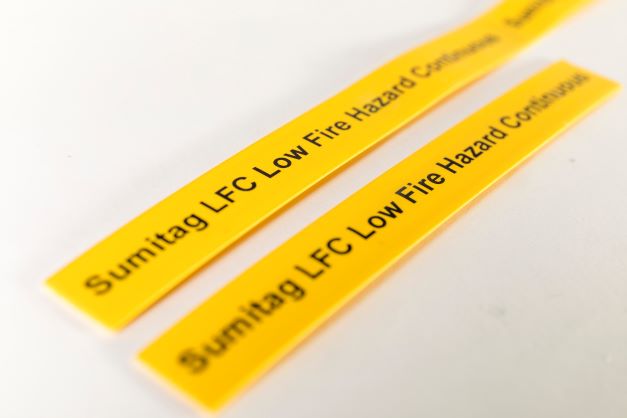

Flame Retardant, Zero Halogen, Low Smoke, Low Toxicity, Cross Linked, UV stabilized, Polyolefin.
DEF STAN 59-97, issue 3, Type 8 LUL Standard 1-085 (Limited, Dispersed usage) (Formerly LUL 2-01001-002) BS6853 - Vehicle Cat. 1a EN45545 (HL1, HL2 and HL3) LUL 2-01001-002 (E1042A6)
-40° C to +105° C
3/32" to 2"
2:1
Yellow, White
Mil-Spec Diesel Resistant Polyolefin
-
-55° C to +135° C
1/8" to 2"
3:1
Yellow, White

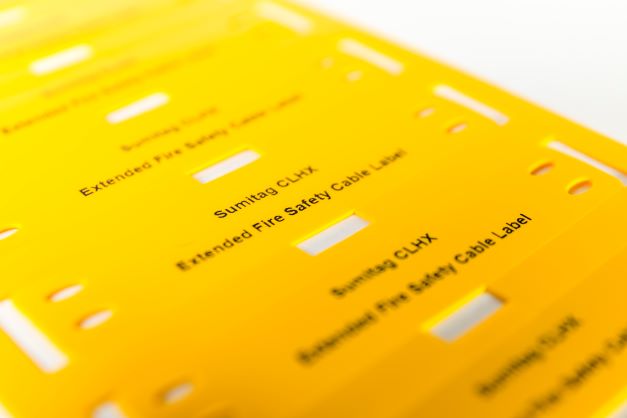

Cable Labels
Product name
Features
Specifications / Approvals
Continuous operating temperature
Sizes
Shrink ratio
Available colors

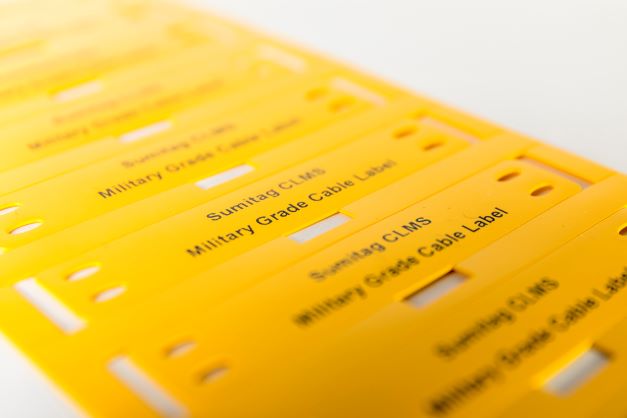

Military Grade, Flame Retarded
Flame Retardant to NF F00-608 & NF C32-070
-35° C to +135° C
See chart
Not applicable
Yellow, White

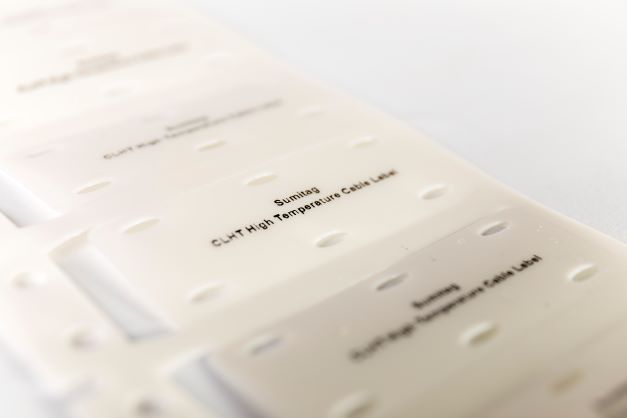

High Temperature, Flame Retarded
UL224 VW-1 Flammability
-55° C to +225° C
See chart
Not applicable
White
High Temperature, Flame Retarded, Low Smoke, Zero Halogen, Self-Extinguishing
LUL 1-085 LUL 2-01001-002 (E1042A6) EN45545 (HL1, HL2 & HL3) BS6853 Cat. 1a BS 4G198, Part 3, Type 15 DEF STAN 59-97, Type 8
-40° C to +105° C
See chart
Not applicable
Yellow, White
Flame Retarded
SNCF NF F 00-608 Type H UL 125C, 300V
-55° C to +135° C
See chart
Not applicable
Yellow, White

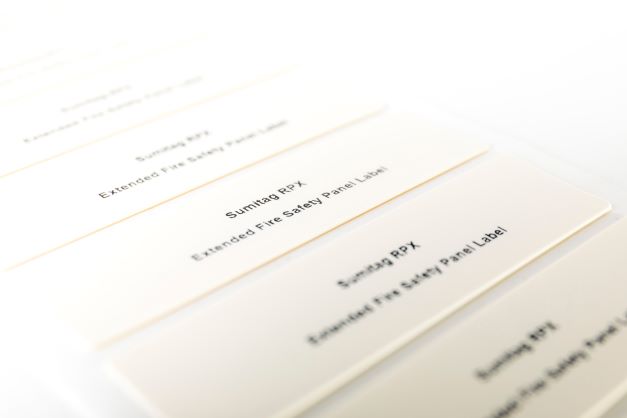

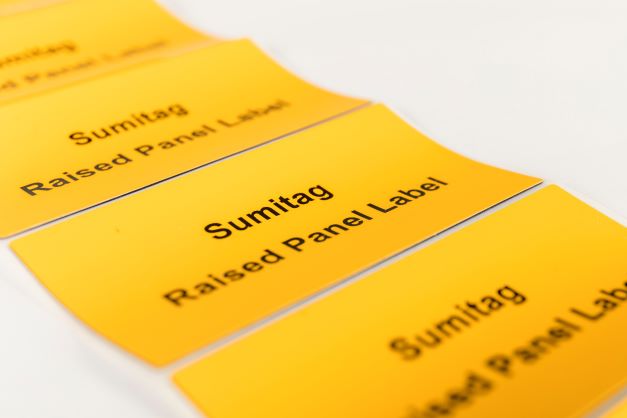

Raised Panel Labels
Product name
Features
Specifications / Approvals
Continuous operating temperature
Sizes
Shrink ratio
Available colors
High Tack Adhesive Raised Labels
BS 3G198, Part 2, Type 7
-40° C to +105° C
See chart
Not applicable
Yellow, White
High Tack Adhesive Raised Labels
EN45545 (HL1, HL2 & HL3) LUL 1-085 LUL 2-01001-002 (E1042A6) BS6853 Cat. 1a BS 4G198, Part 3, Type 15 DEF STAN 59-97, Type 8
-40° C to +105° C
See chart
Not applicable
Yellow, White
High Tack Adhesive Raised Labels
EN45545 (HL1, HL2 & HL3) LUL 1-085 LUL 2-01001-002 (E1042A6) BS6853 Cat. 1a BS 4G198, Part 3, Type 15 DEF STAN 59-97, Type 8
-40° C to +105° C
See chart
Not applicable
Yellow, White
